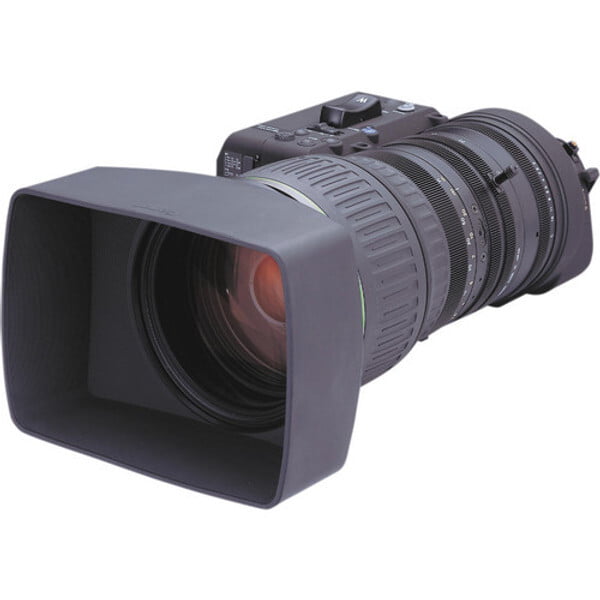

Canon HJ40X14B IASDV 2/3" EFP Telephoto Lens with Full Servo Kit

$51,925.86
Boasting up to 40x magnification, this 2/3-inch HD TV Electric Field Production (EFP) lens for broadcasting use is capable of shooting from a wide-angle 14mm focal length up to a super telephoto 560mm, doubled to 1120mm with its built-in 2x extender.
Quantity
Add to Cart
Product Details
SPECIFICATION
Lens Model NumberHJ40ex14B IASE-V H
Image Size2/3"
Zoom Ratio40x
Built-in Extender2.0x
Range of Focal Length
(with Extender)
14 ~ 560mm
28 ~ 1120mm (2.0x)
Maximum Relative Aperture
(with Extender)
1:2.8 at 14 ~ 307mm
1:5.1 at 560mm
1:5.6 at 28 ~ 614mm (2.0x)
1:10.2 at 1120mm (2.0x)
Angular field of view
(with Extender)
16:9 Aspect Ratio
(9.6 x 5.4mm)
37.8° x 21.8° at 14mm
1.0° x 0.6° at 560mm
19.4° x 11.0° at 28mm (2.0x)
0.5° x 0.3° at 1120mm (2.0x)
Minimum Object Distance (M.O.D.) from lens front2.8m (10mm with Macro)
Object Dimensions at M.O.D.
(with Extender)
16:9 Aspect Ratio
(9.6 x 5.4mm)
177.1 x 99.5cm at 14mm
4.5 x 2.5cm at 560mm
88.6 x 49.8cm at 28mm (2.0x)
2.3 x 1.3cm at 1120mm (2.0x)
Size (W x H x L)167.5 x 133.0 x 355.5mm
Weight5.55kg (12.2lbs)
