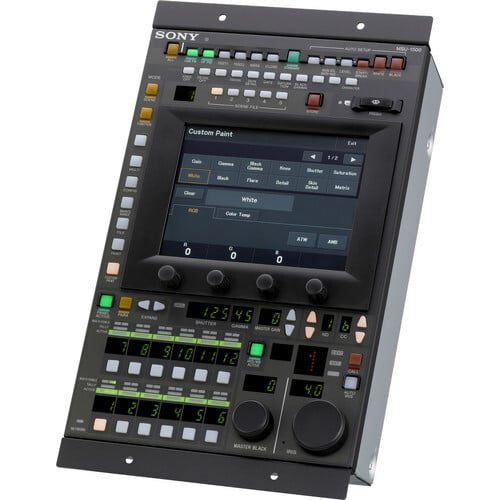

The Sony MSU-1500 Master Setup Unit is a vertically oriented control panel designed for camera configuration and maintenance. Control of multiple camera systems is possible via an optional CNU-700 Camera Command Network Unit Large and Flexible System Configuration.
Specification
Input and Output Connectors
Ethernet: 8-pin RJ-45 (x1) CCU/CNU: 8-pin Multi-connector, female (x1) AUX: 8-pin Multi-connector, female (x1) EXT I/O: 50-pin D-Sub, female (x1) AC IN: 3-pin (x1) DC IN: 4-pin (x1)
Power Supply
100-240VAC, 50/60 Hz, 0.35 A (max) 10.5-17VDC, 1.2 A (max)
Operating Temperature
41° to 104°F (5° to 40°C)
Dimensions (WxHxD)
8.13 x 14 x 2.75" (20.4 x 35.4 x 6.7 cm)
Weight
7.9 lbs (3.6kg)
Packaging Info
Package Weight
10.95 lb
Box Dimensions (LxWxH)
19 x 12 x 10"
