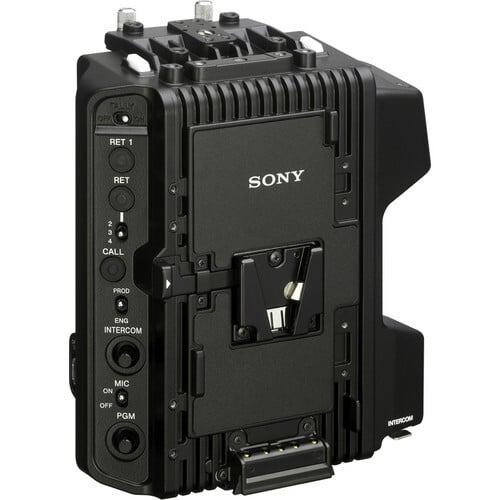

Sony CA-FB70 Optical Fiber Camera Adapter
The Sony CA-FB70 Optical Fiber Camera Adapter is designed for use with the HXC-D70 HD Transmission Studio Camera and the PMW320 / 350 / 500 XDCAM Camcorders. Cost-effective optical fiber transmission solution for the HXC-D70 HD studio camera and the PMW-320 / 350 / 500 XDCAM camcorder.
Specification
Inputs & Outputs | |
Camera | Camcorder: 50-pin (1x) |
CCU | Optical multi-connector |
Output | Prompter: BNC (1x), 1 Vpp, 75 Ω |
Intercom | XLR 5-pin, female (1x) |
DC Input | XLR 4-pin (1x) |
DC Output | 4-pin (1x) |
General | |
Operation Temperature | 14 to 113°F (-10 to 45°C) |
Power Supply | 48 VDC via CCU connector / DC 11 V to 17 V via DC Input |
Power Consumption | Maximum 75 W (at 48 VDC), maximum 70 W (at 12 VDC) (including power supply for the camera) |
Storage Temperature | -4 to 140°F (-20 to 60°C) |
Dimensions (W x H x D) | 6.25 x 6.75 x 3.62" (158.75 x 171.45 x 91.94 mm) |
Weight | 1.75 lb (0.79 kg) |
Packaging Info
Package Weight | 2.85 lb |
Box Dimensions (LxWxH) | 11 x 8.7 x 6.8" |
