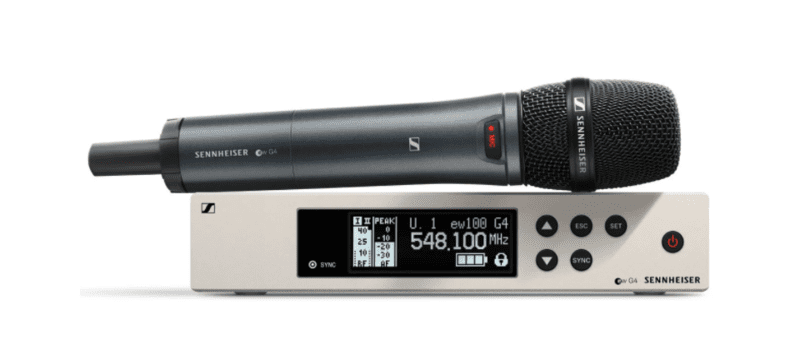

SENNHEISER G4-835-S-GB ew 100 Evolution Wireless G4

• Frequency range

  1G8: 1785 - 1800 MHz

  A: 516 - 558 MHz

  A1: 470 - 516 MHz

  AS: 520 - 558 MHz

  B: 626 - 668 MHz

  C: 734 - 776 MHz

  D: 780 - 822 MHz

  E: 823 - 865 MHz

  G: 566 - 608 MHz

  GB: 606 - 648 MHz

  JB: 806 - 810 MHz

  K+: 925 - 937,5 MHz

  A: 516 - 558 MHz

  AS: 520 - 558 MHz

  GB: 606 - 648 MHz

  G: 566 - 608 MHz

  B: 626 - 668 MHz

  C: 734 - 776 MHz

  D: 780 - 822 MHz

  E: 823 - 865 MHz

  1G8: 1785 - 1800 MHz

  JB: 806 - 810 MHz

  K+: 925 - 937,5 MHz



• Dimensions

  Approx. 190 x 212 x 43 mm



• Compander

  Sennheiser HDX



• THD, total harmonic distortion

  ≤ 0.9 %



• Weight

  Approx. 980 g



• Audio output

  6.3 mm jack socket (unbalanced): +12 dBu

  XLR socket (balanced): +18 dBu



• Signal-to-noise ratio

  ≥ 110 dBA



• Switching bandwidth

  up to 42 MHz



• Peak deviation

  ±48 kHz



• Nominal deviation

  ±24 kHz



• Modulation

  Wideband FM



• Power supply

  12 V DC



• Antenna connector

  2 BNC sockets



• Current consumption

  300 mA



• Adjacent channel rejection

  Typically ≥ 65 dB



• Intermodulation attenuation

  Typically ≥ 65 dB



• Receiving frequency

  Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels



• RF sensitivity

  < 2.5 μV for 52 dBA eff S/N



• Squelch

  low: 5 dBµV middle: 15 dBµV high: 25 dBμV



• Equalizer

  Preset 1: Flat

  Preset 2: Low Cut (-3 dB at 180 Hz)

  Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

  Preset 4: High Boost (+6 dB at 10 kHz)



• Temperature Range

  -10 °C to +55 °C



• Receiver Principle

  True diversity



• Blocking

  ≥ 70 dB

SKM 100 G4-S

• Dimensions

  Approx. Ø 50 x 265 mm



• Compander

  Sennheiser HDX



• THD, total harmonic distortion

  ≤ 0.9 %



• Weight

  (incl. batteries) approx. 450 g



• Signal-to-noise ratio

  ≥ 110 dBA



• RF output power

  Max. 30 mW



• Switching bandwidth

  up to 42 MHz



• Peak deviation

  ±48 kHz



• Nominal deviation

  ±24 kHz



• Operating time

  Typically 8 h



• Modulation

  Wideband FM



• Power supply

  2 AA batteries, 1.5 V or BA 2015 accupack



• Current consumption

  at nominal voltage: typ. 180 mA

  with transmitter switched off: ≤ 25 µA



• Input impedance

  40 kΩ



• Max. Input voltage

  3 Veff



• Powering

  3 V battery / 2.4 V rechargeable battery



• Transmission frequency

  Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels



• AF frequency response

  80 – 18,000 Hz



• Temperature Range

  -10 °C to +55 °C



• Frequency stability

  ≤ ±15 ppm

MMD 835-1

• Sound pressure level (SPL)

  154 dB SPL



• Transducer principle

  dynamic



• Pick-up pattern

  cardioid



• Sensitivity

  2.1 mV/Pa
