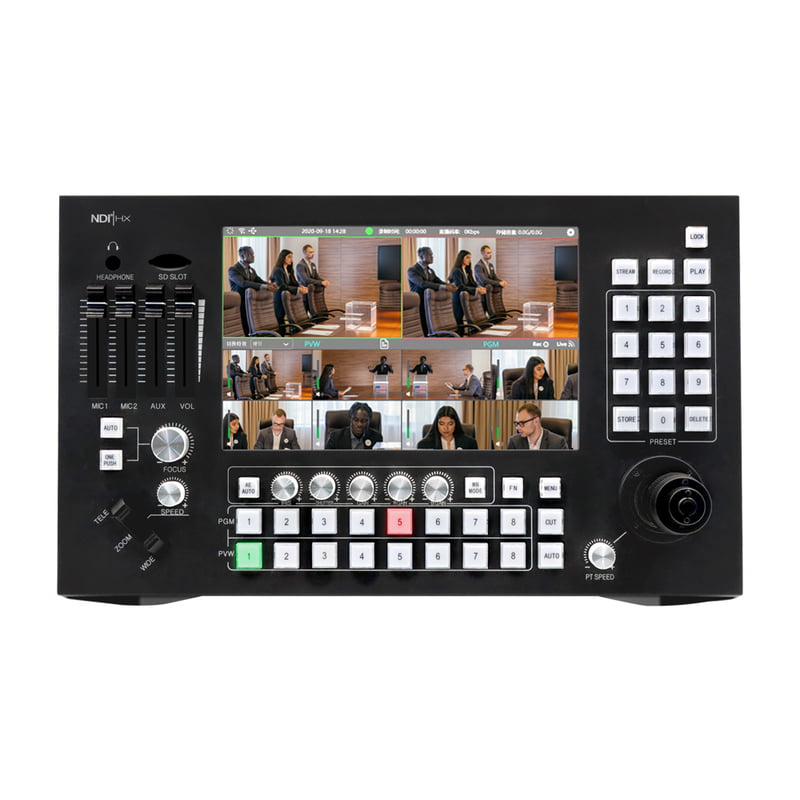

Katovision KT-KD30 live video switcher
Video Standard | FHD |
Video Processing Capability | Input: Up to :1920x1080p60 * 8 Output: Up to 1920x1080p60（HDMI）+1920x1080p60（IP）+1280x720p60（IP） |
Video Input | 8 channels IP video streaming +1 channel HDMI+ local video |
Video Output | 2 channels IP video streaming +1 channel HDMI+ local recording |
Live Video Encoding Format | H.264、H.265 |
Live Video Bitrate | 512Kbps~16384Kbps |
Live Video Bitrate Mode | CBR |
Network Input Protocol | RTSP、RTMP、NDI|HX(optional) |
Network Output Protocol | RTSP、RTMP |
Audio Input | RCA*1 TRS6.3mm*2: Compatible with active and passive signals Video embedded |
Audio Output | RCA*1 Video embedded |
Mixer | 4 physical tuning + 8 digital tuning |
Transition Control | T-Bar、button 、touch |
Subtitle Overlay | Support |
Logo Overlay | Support |
Tally | DB9 output |
USB Port | USB3.0*2+USB2.0*2 |
Camera Control | Support PTZ, focus, exposure, white balance, preset position control |
Power Supply | |
Input Voltage | DC 12V |
Input Current | 3A |
Rated Power | 36W |
POE | Optional 802.3AT |
Others | |
Use Environment | Indoor |
Operating Temperature | 0℃~40℃ |
Storage Temperature | -10-50℃ |
Camera Dimensions | 420*257.52*121.2mm |
Accessories | Power adapter, Power cable, HDMI cable,User manual, Bracket |
