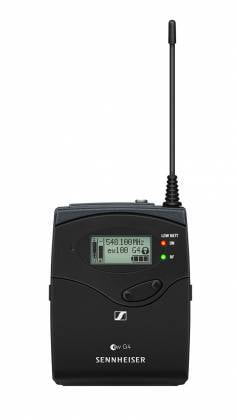

Sennheiser EK 100 G4-C
Frequency range
A: 516 - 558 MHz
A1: 470 - 516 MHz
AS: 520 - 558 MHz
B: 626 - 668 MHz
C: 734 - 776 MHz
D: 780 - 822 MHz
E: 823 - 865 MHz
G: 566 - 608 MHz
GB: 606 - 648 MHz
JB: 806 - 810 MHz
K+: 925 - 937,5 MHz
Dimensions
Approx. 82 x 64 x 24 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
≤ 0.9 %
Weight
(incl. batteries) approx. 160 g
Audio output
3.5 mm jack socket: +12 dBu (mono, unbalanced)
Signal-to-noise ratio
≥ 110 dBA
Switching bandwidth
up to 42 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mA
with receiver switched off: ≤ 25 µA
Adjacent channel rejection
≥ 65 dB
Intermodulation attenuation
≥ 65 dB
Powering
3 V battery / 2.4 V rechargeable battery
Receiving frequency
Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity
< 1.6 μV for 52 dBA eff S/N
Squelch
low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
Temperature Range
-10 °C to +55 °C
Receiver Principle
Adaptive diversity
Blocking
≥ 70 dB
