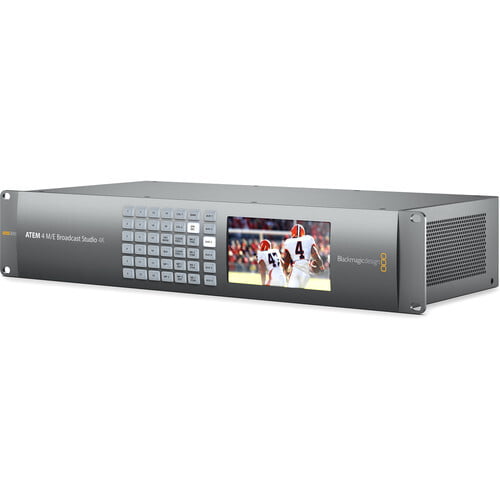

Blackmagic Design ATEM 4 M/E Broadcast Studio 4K
The Blackmagic Design ATEM 4 M/E Broadcast Studio 4K is a live switcher designed for HD and UHD 4K broadcast productions.
Specification
Standards
Format Support
3840 x 2160: 59.94/50/29.97/25/24/23.98
1080p 59.94/50/29.97/25/24/23.98
1080i 59.94/50
720p 59.94/50
SDI Compliance
SMPTE 292M, SMPTE 424M, SMPTE 2082
Connectivity
Inputs
12G/6G/3G/HD-SDI: 20 x BNC
Stereo Analog Audio: 1 x 2XLR, 1 x 2RCA
Talkback: 1 x XLR
Timecode: 1 x XLR
Reference: 1 x BNC
Outputs
SDI Monitor: 2 x BNC
SDI Program: 3 x BNC
SDI Aux: 6 x BNC
SDI M/E 1 Preview: 1 x BNC
SDI M/E 2 Program: 1 x BNC
Analog Audio: 4 x XLR
Timecode: 1 x XLR
Talkback: 1 x XLR
Other I/O
Network: 1 x RJ45
Computer: 1 x USB 2.0 Type-B
RS-422: 1 x DE-9
Processing
Processing Delay
<7 lines
Video Sampling
4:2:2
Color Space
REC 601
REC 709
REC 2020
Color Precision
10-bit
Audio Mixer
24-input mixer (2 channels per input)
Built-in Media Players
Quantity
4
Clip Capacity
Quantity
2 with fill and key
Maximum Clip Length
UHD: 360 frames
1080p/i: 1440 frames
720p: 3200 frames
Still Image Capacity
64 with fill and key
Image File Formats
Still
PNG, TGA, BMP, GIF, JPEG, and TIFF
Video
TGA sequence
Audio
WAV, MP3, AIFF
Multi-View Monitoring
Display
Minimum monitor resolution: 1366 x 768
Number of Windows
2 x Multi-view displays with 10 x windows for Preview/Program
16 x assignable displays
Tally
Red for program and green for preview indication
Note: Requires optional Blackmagic Design GPI and Tally interface product
Extras
Layers
29 Total
Keyers
16 x Upstream
2 x Downstream
19 x Linear/Luma
1 x Stinger
16 x Chroma
1 x DVE
Generators
7 x Pattern
2 x Color
Power
Power Supply
2 x built-in power supply
110/240 VAC, 50/60 Hz
Note: IEC power cord required, not included
Power Consumption
300 W
General
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Relative Humidity
0 to 90% non-condensing
Rack Size
2 RU
Dimensions (W x H x D)
19 x 3.5 x 9.25" / 48.3 x 9 x 23.5 cm
Weight
6 lb / 2.72 kg
