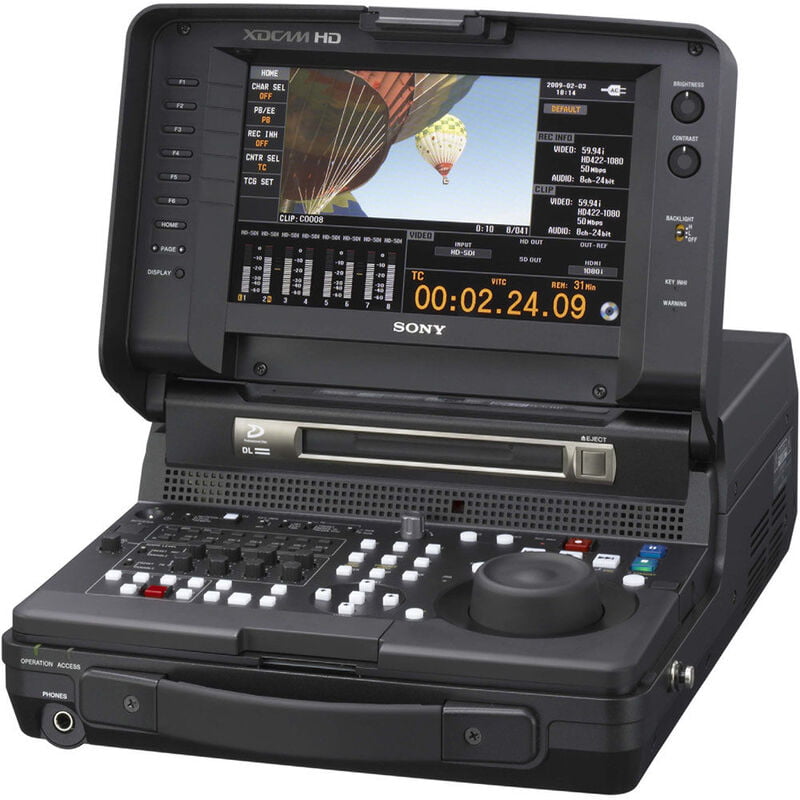

Sony PDW-HR1/MK1 XDCAM HD422 Field Recorder

Application

XDCAM HD422 Recording/Playback

LCD

9"

Formats

Video:
MPEG HD422 (CBR: 50 Mb/s)
MPEG HD: HQ mode (VBR, maximum bit rate: 35 Mb/s)
SP mode (CBR, 25 Mb/s)
LP mode (VBR, maximum bit rate: 18 Mb/s) (Playback only)
MPEG IMX (CBR, 50/40/30 Mb/s)
DVCAM (CBR, 25 Mb/s)

Proxy Video:
MPEG-4

Audio:
MPEG HD422: 8 ch/24 bits/48 kHz
MPEG HD: 4 ch/16 bits/48 kHz
MPEG IMX: 4 ch/24 bits/48 kHz or 8 ch/16 bits/48 kHz
DVCAM: 4 ch/16 bits/48 kHz

Proxy Audio:
A-law (8 ch/8 bits/8 kHz)

Search Speed Range

Jog mode: -1 to +1 times normal speed
Variable mode: -1 to +1 times normal speed
Shuttle mode: -20 to +20 times normal speed
F.Fwd/Rev: -20 to +20 times normal speed

Inputs/Outputs

Composite: BNC (x1 Input, x1 Output)
HD-SDI: BNC (x1 Input, x2 Output)
HDMI (x1 Output)
Reference: BNC (x2 Input)
Analog Audio: XLR 3-Pin, Female (x4 Input, x4 Output)
Timecode: BNC (x1 Input, x1 Output)
Headphone: Stereo MiniJack
i.LINK/FireWire: 6-Pin (x2)
Ethernet: RJ-45 1000-BaseT
DVB-ASI (x1 Output)
Remote: RS-422A, 9-Pin (x1 Input/Output)
USB: USB 2.0 (x2)

Audio Capabilities

Sampling Frequency: 48 kHz
Quantization: 24 bits
Frequency Response: 20 Hz to 20 kHz +0.5/-1.0 dB (0 dB at 1 kHz)
Dynamic Range: More than 90 dB
Distortion: Less than 0.05% (at 1kHz)
Headroom: 20/18/16/12 dB (selectable)

Speaker

Built-in (x2), L/R

Operating Temperature

23-113°F (^-5-45°C)

Power Requirements

100-240VAC, 50/60 Hz
12VDC

Power Consumption

VAC: 65W
VDC: 55W

Dimensions (WxHxD)

11.9 x 5.2 x 15.8" (30 x 12.9 x 40cm)

Weight

16.3 lbs (7.4kg)

Package Weight

Box Dimensions (LxWxH)

22 x 16.5 x 11.5"
