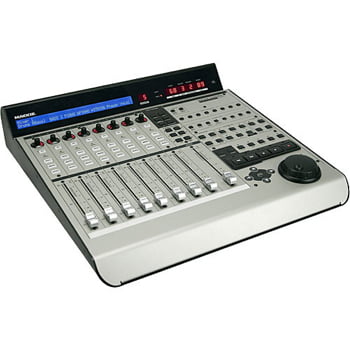

Mackie MCU Pro Expandable USB/MIDI Control Surface
The Mackie MCU Pro is a 9-fader (eight channels plus one master) USB/MIDI control surface that provides mixing, editing, automation, and navigational control for any supported digital audio workstation. It supports Mackie Control, HUI, and Logic Control modes to allow it to communicate with various software applications. Connect the MCU Pro to your computer via USB or MIDI.
Mackie MCU PRO Specs
USB Port | 1 x USB 1.1 Type-B |
MIDI I/O | 3 x 5-Pin MIDI Inputs |
Footswitch Input | 2 x 1/4" |
Control Input | 1 x 1/4" |
Faders | 9 |
Transport Controls | Yes |
Jog/Shuttle | Yes |
Rotary Controls | 8 |
Numeric Keypad | No |
Display | 40 x 2-Character LEDs |
Control Protocols | Mackie Control |
System Requirements | Available USB Port |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Power Requirements | 7.5 VDC, 3 to 4 A via External Power Adapter (1 A, 100 to 240 VAC, 50/60 Hz) |
Dimensions (W x D x H) | 16.5 x 16.9 x 4.4" / 41.9 x 42.9 x 11.3 cm |
Weight | 16.8 lb / 7.6 kg |
Packaging Info
Package Weight | 23 lb |
Box Dimensions (LxWxH) | 20.4 x 20.3 x 10" |
