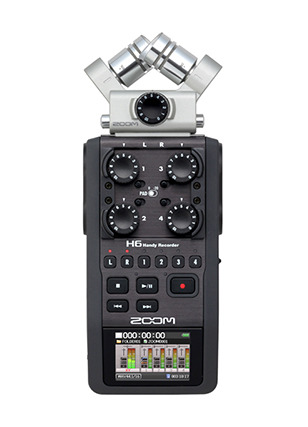

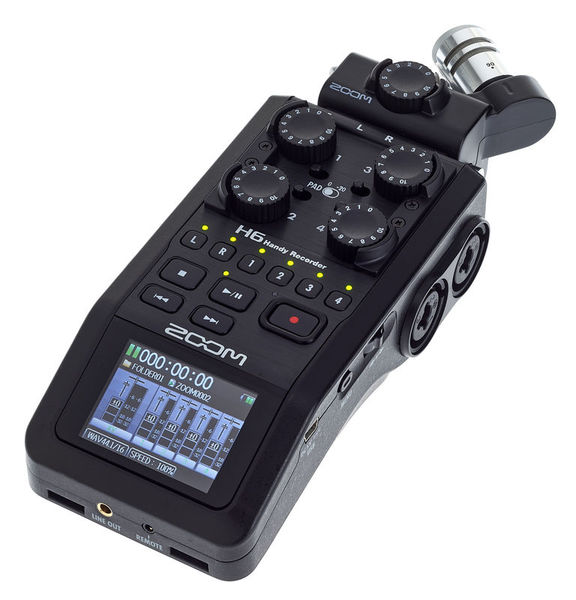

Zoom H6 All Black 6-Input / 6-Track Portable Handy Recorder with Single Mic Capsule

Number of Tracks

WAV:
6
MP3:
2

Max Sample Rate/Resolution

96 kHz / 24-Bit

Microphone

Interchangeable Cardioid Condenser Stereo Pair, X/Y Configuration

Built-In Speaker

Yes, 400 mW Mono

Display

2" / 5.08 cm Color LCD (Backlit)

Memory Card Support

SD (16 MB to 2 GB)
SDHC (4 to 32 GB)
SDXC (64 to 128 GB)

Internal Storage

None

Audio File Formats

BWF, MP3, WAV

Sample Rates

WAV:
44.1 / 48 / 96 kHz
MP3:
44.1 kHz

Bit Depth

16 / 24-Bit

Bit Rates

48 to 320 kb/s

Signal Processing

Compressor, Limiter, Low-Cut Filter, Pitch Control

Timecode

No

Recording Time

WAV 44.1 kHz/16-Bit:
1 Hr 34 Mins per GB (Stereo)
MP3 128 kb/s:
17 Hrs 21.5 Mins per GB (Stereo)

Analog I/O

4 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Line/Mic Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output

Digital I/O

None

Phantom Power

+12 / 24 / 48 V (Selectable on Individual Inputs)

Plug-In Power

Yes, 2.5 V

Host Connection

1 x Mini-USB (USB 2.0)

Gain Range

X/Y Mic Capsule:
Up to +46.5 dB
1/8" Inputs:
Up to +46.5 dB
Mic/Line Inputs:
Up to +55.5 dB

Max Input Level

Inputs:
+22 dBu (Pad On)

Max Output Level

Line Outputs:
-10 dBu

Headphone Output Power

20 mW per Channel into 32 Ohms

Impedance

1/8" / 3.5 mm Inputs:
2 Kilohms
Mic/Line Inputs:
1.8 Kilohms

EIN

≤-120 dBu

Microphone Sensitivity

-41 dB/Pa (X/Y)

Microphone Max SPL

136 dB SPL (X/Y)

Power Options

Batteries, USB Bus Power, AC/DC Power Adapter

Battery Type

4 x AA (Included)

Approximate Battery Life

WAV 44.1 kHz/16-Bit:
21 Hours (Alkaline, 2 Channels)
WAV 96 kHz/24-Bit:
9.75 Hours (Alkaline, All Channels)

AC/DC Power Adapter

5 VDC at 1 A (Not Included)

Mounting Options

1/4"-20 Female

Dimensions

3.1 x 1.9 x 6" / 77.8 x 47.8 x 152.8 mm (Recorder)
3.1 x 1.8 x 2.4" / 78.9 x 45.2 x 60.2 mm (X/Y Mic)

Weight

9.9 oz / 280 g (Recorder)
4.6 oz / 130 g (X/Y Mic)

Package Weight

Box Dimensions (LxWxH)

8.4 x 6.4 x 2.4"
