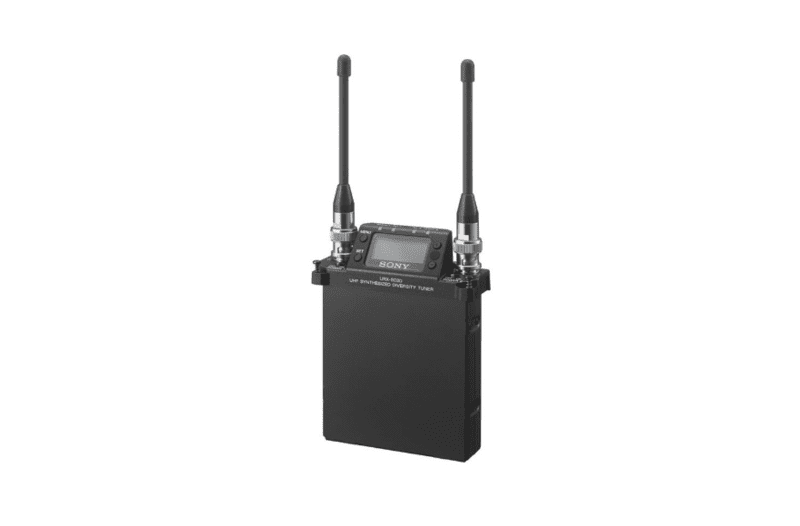

Sony URX-S03D/K42 UWP-D Portable Two-Channel Wireless Receiver
The URXS03D/K42 UWP-D Portable Two-Channel Wireless Receiver from Sony operates in UHF-TV channels 42-51 and fits directly in the slot of Sony XDCAM and HDCAM camcorders.
Specification
Antenna Connector: 2 X BNC-R, 50 Ohms
Squelch: Level: 15 dBµ / Off (0 dBµ = 1 µV)
Audio Output Level: -40 dBu (0 dBu = 0.775 Vrms with modulating frequency of 1 kHz and frequency deviation of ±5.0 kHz)
Accessory Connector: 1 x D-sub connector (15-pin)
Reception: True diversity method
Oscillator: Crystal-controlled PLL synthesizer
Frequency Band: 42/51: 638 to 698 MHz
Signal to Noise Ratio: 60 dB or more (A-weighted)
Voice Delay: 0.375 ms
Deemphasis: 50 μs
Frequency Deviation: ±5 kHz
Frequency Response: 40 Hz to 18 kHz
Distortion: 0.9% or less (with modulating frequency of 1 kHz and frequency deviation of ±5.0 kHz)
Tone Signal:
- In UWP-D Compander Mode: 32.382 kHz
- In UWP Compander Mode: 32 kHz
- In WL800 Compander Mode: 32.768 kHz
Indicators: Power 1/2, RF 1/2
Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 131°F (-20 to 55°C)
Supply Voltage: 7.0 VDC (supplied from camcorder or wireless adapter)
Current Consumption: 200 mA or less (during 7 VDC)
Dimensions: 3.5 x 4.6 x 1.2" / 88.0 x 116.2 x 31.2 mm
Weight: 11 oz / 303 g
