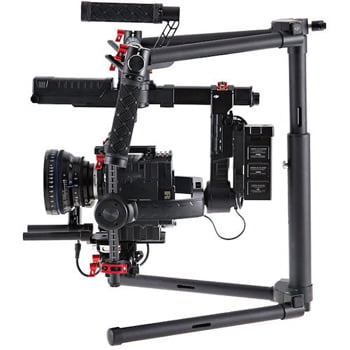

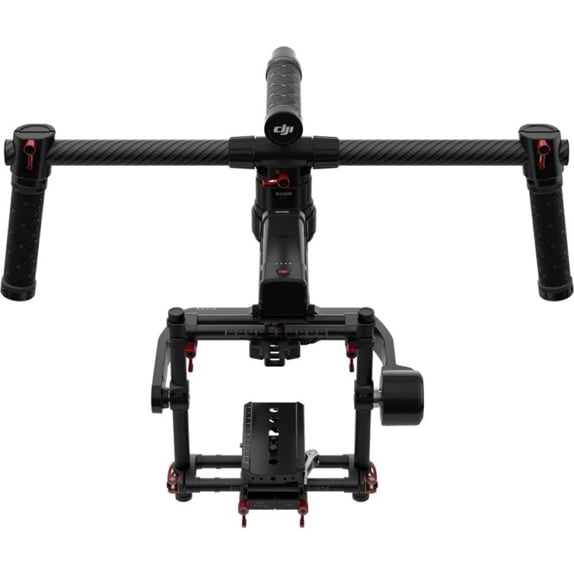

DJI Ronin-MX 3-Axis Gimbal Stabilizer

Number of Axes

3-Axis (Pitch, Roll, Yaw)

Rotation Range

Yaw (Pan): 360°
Pitch (Tilt): -150 to 270°
Roll: -110 to 110°

Follow Speed

Pan: 200°/s
Tilt: 100°/s
Roll: 30°/s

Load Capacity

10 lb / 4.5 kg

Stabilization Accuracy

±0.02° (Motionless)

Supported Camera Dimensions

W: 6.3 x H: 7.7 x D: 4.7" / W: 160 x H: 195 x D: 120 mm

Ports

1 x D-Bus (Control) Input
1 x USB Micro-B Input
2 x D-Tap (Power) Output
1 x USB (Unspecified Type) (Power) Output
1 x DJI Lightbridge (Power) Output

Wireless Frequency

2.4 GHz

Wireless Protocol

Bluetooth 4.0

Battery Type

1 x Ronin-M

Voltage

14.8 VDC

Operating Temperature

5 to 120°F / -15 to 50°C

Dimensions

11 x 14.6 x 13.4" / 280 x 370 x 340 mm (without Handlebar)
22 x 14.6 x 17.3" / 560 x 370 x 440 mm (with Handlebar)

Weight

6.11 lb / 2.77 kg (with Handlebar)
4.74 lb / 2.15 kg
