DATAVIDEO ITC-100 - Intercom/ talkback system

Power

DC 12V, 8W

Tally

2 x 15 Pin DSub Sockets for Tally A and B

MIC / Headset

3.5 mm Stereo Jack Socket for Headphone /Microphone combination
Headset Impedance 8-600 Ohms 100 mW (min)

Headphone

¼” (6.3mm) Stereo Headphone Socket
Headset Impedance 8-600 Ohms 100 mW (min)

Light Socket (DC 12 V)

3 PIN XLR Connector
PIN 2: 12V
PIN 3: GND
Light Power Consumption: 12 V / 100 mA (MAX.)

Microphone

3 PIN XLR / ¼” (6.3mm) Jack Microphone Socket
Switchable Condenser / Dynamic Input
Microphone Level -67 dB

Frequency Response

550-3.6 kHz, <+/- 3dB

THD

< 3%

S/N

> 50dB

Built-in Speaker

70mm x 30mm 32 Ohm 3 Watts

Operating Range

Up to 200 meters between base station and slave

Operating Temp. Range

0~40 °C

Dimension (LxWxH)

482 x 127 x 46 mm

Weight

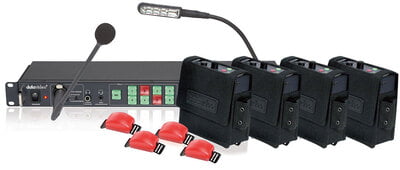

What's in the Box

1 x ITC-100 Base Unit
4 x ITC-100SL Belt Pack
4 x ITC-100SL Carry Case
4 x Cable 5piin XLR to XLR
4 x 3.5mm Jack to 3.5mm Jack Cable
4 x Headset with microphone
4 x Tally LED Indicator
1 x XLR Gooseneck Microphone
1 x XLR Gooseneck Light
1 x 12V 1A Power Supply Unit
1 x Thank You Card
