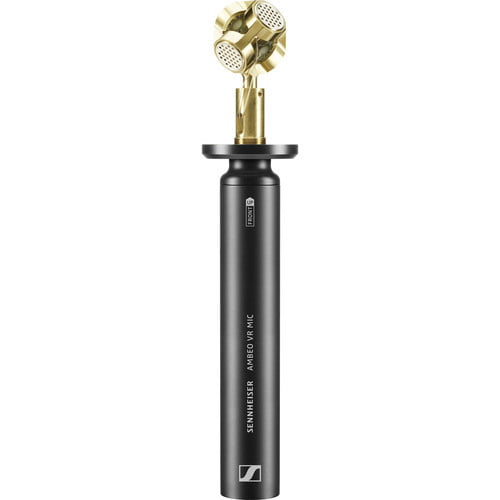

Sennheiser AMBEO VR MIC
The AMBEO VR Mic makes capturing real spatial sound as simple as any stereo recording. You don’t need to set up several microphones – saving you time, money and manpower.
Dimensions
215 x 49/25 mm (L x D)
Frequency response
20 Hz to 20 kHz
Max. sound pressure level
130 dB(A) for 1 kHz
Transducer principle
Pre-polarized condenser microphone
Weight
1.060 g
Microphone connector
DIN12M, use enclosed adapter cable to convert to 4x XLR3M Polarity: Pin1 (GND), Pin2 (+), Pin3 (-)
Pick-up pattern
4x cardioid, in A-format arrangement (1: front-left-up [FLU], 2: front-right-down [FRD], 3: back-left-down [BLD], 4: back-right-up [BRU])
Nominal impedance
Approx. 200 Ω
Min. terminating impedance
1000 Ω
Storage temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Operating temperature
-10 °C to 55 °C (14 °F to 131 °F)
Equivalent noise level
18 dB-A as per IEC 61672-1 / 27 dB CCIR as per CCIR 468-3
Power supply
4x phantom powering (P48) as per IEC 61938 (48 ± 4 V), 3.5 mA each
Sensitivity
31 mV/Pa (-30 dBV)
Operating relative humidity
Max 90% at 40 °C
Matrix reference
Center of the capsule holder
Mixing to B-format
W = FLU + FRD + BLD + BRU / X = FLU + FRD – BLD – BRU / Y = FLU – FRD + BLD – BRU / Z = FLU – FRD – BLD + BRU
