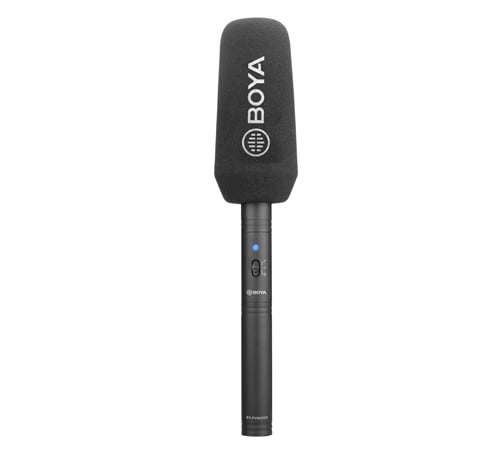

Boya BY-PVM3000S Supercardioid shotgun microphone
The BOYA BY-PVM3000S is a short shotgun microphone featuring a modular design that supports other optional interchangeable capsules to maximize versatility and cost-effectiveness for a range of video production and sound design applications.
Specification
Microphone
Form Factor | Stand/Boom Mount |
Sound Field | Mono |
Operating Principle | Pressure Gradient |
Capsule | 1 x Electret Condenser |
Polar Pattern | Supercardioid |
Orientation | End Address |
Circuitry | Solid-State |
Pad | None |
High-Pass Filter | 150 Hz |
Tone Adjustment | None |
Indicators | 1 x Blue Single LED (Power) |
On-Board Controls | High-Pass Filter, On/Off |
Windscreen | Foam, Windsock/Windjammer (Included) |
Performance
Frequency Range | 40 Hz to 20 kHz |
Off-Axis Rejection | 8 dB at 60° |
Impedance | 50 Ohms |
Sensitivity | -32 dB |
Signal-to-Noise Ratio | 80 dB |
Connectivity
Output Connectors (Analog) | 1 x XLR 3-Pin Male |
Headphone Connector | None |
Power
Operating Voltage | 48 V (Phantom Power) |
Battery Type | 1 x AA |
Physical
Mounting | Shockmount (Included) |
Construction Material | Aluminum |
Dimensions | L: 5.35" / L: 13.6 cm (Capsule) |
Weight | 5.75 oz / 0.16kg |
