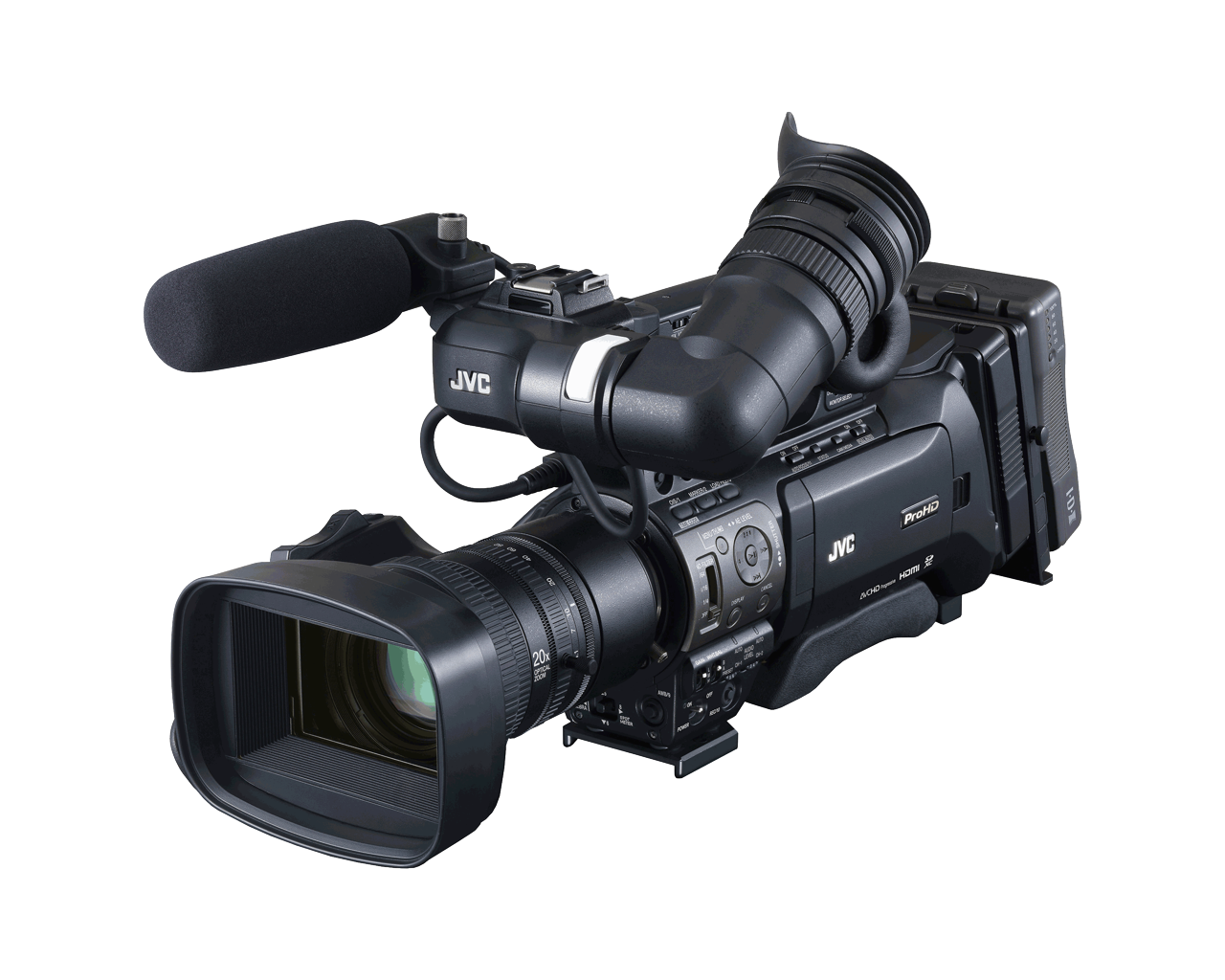

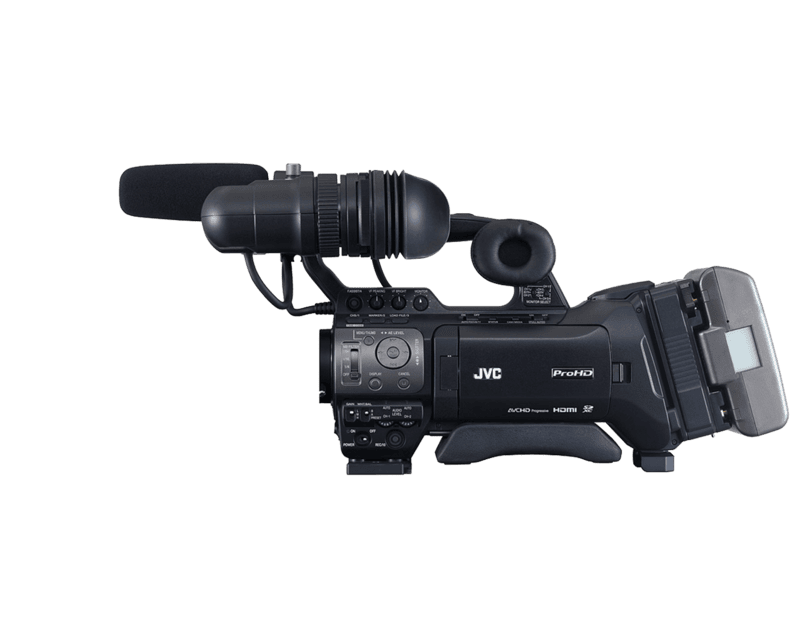

JVC GY-HM890RCHE Studio/ENG IP camcorder, no lens with 3G/4G/LTE/Wifi/FTP/Remote & Live Streaming

Camera Front-End Specifcations

Image sensor (inch)

1/3 CMOS

Number of Sensors

3

Mega Pixels

2,2

Gain in dB

0 to 24

Sensitivity in F at 2000 Lux

F 12

Synchronization External

Yes, and internal

Genlock

Yes

Shutter Speed

1/4 to 1/10000

White Balance Modes

FAW, AWA, 3200K, 5600K, Manual

Colour Matrix Adjustment

Yes

Wide Dynamic Range Mode (WDR)

Yes

User Selected Function Buttons

Yes, 12

User Customizes Menu

Yes

Optical Specifications

Lens Mount

B4

Optical Zoom X Times

0

Lens F Number

0 to 0

Lens Ratio from / to

4.1mm to 82mm

Lens Ratio Equivalent to 35mm

0mm to 0mm

Filter Diameter in mm

0mm

Build in ND Filters

3 Filters: 1/4, 1/16, 1/64 plus OPEN

Recording Formats

Media

SDHC/SDXC

Media Class

Class 10

Recording Slots

2

Encoder

MPEG2 / H.264

File Format MOV

Yes

File Format MP4

Yes

File Format AVCHD

Yes

File Format MXF

Yes

Video Codec MPEG42 Long GOP

Yes

Video Codec AVCHD

Yes

Video Codec H264 (SD)

Yes

Recording Specials

HD+SD / HD+Web

Simultaneous recording on 2 cards

Yes

Simultaneous recording on 2 modes

Yes

Recording Resolution Formats

Recording Data Rate 1

19Mbps(SP), 25Mbps(SP), 35Mbps(HQ)

Recording Data Rate 2

5,9,18,24,28Mbps (AVCHD)

Recording Data Rate 3

35 Mbps (UHQ)

Recording Data Rate 4

50 Mbps (XHQ/YUV422)

Recording Data Rate 5

8 Mbps (SD)

Recording Data Rate 6

5, 3, 0.8 (WEB)

SD Recording

Yes

Over / Under Crank

Yes

Interval Recording

Yes

Pre Rec (retro) Recording

Yes, 10 sec.

Clip Trimming

Yes

Audio Channels

4

Audio Recording Modes

LPCM 2ch/4ch, 48 kHz/16 bit (MPEG-2 Long GOP/H.264), AC3 2ch(AVCHD), μ-law 2ch (Web)

Audio Filters

Yes, Wind Cuts, Limiters, Gains

Audio Equalizer

Yes, Graphical

IP Section of the Product

IP Main Connection

USB A Host

IP Connection Supports

Ethernet, WIFI - and LTE USB Adapters

IP Features Live-Streaming

Yes

IP Features Remote

Yes, Via Web-Browser (no apps needed)

IP Features FTP

Yes

IP Features Meta-Data

Yes

IP Features IFB (Audio-Return via IP)

Yes, with optional Audio encoder

Live-Streaming Bitrates

0.3,0.8,1.5, 2.5, 3,5,8,12Mbps

Live-Streaming Protocols

RTMP, MPEG2-TS/UDP, MPEG2-TS/RTP, RTSP/RTP, ZIXI

Live-Streaming Single Cast

Yes

Live-Streaming Multicast

Yes

Live-Streaming (encoding) for Poolfeed Signals

Yes

Live-Streaming Reconnect

Yes

Live-streaming and Simultaneous REC

Yes

Live-Streaming Pre-sets of Destinations

4

FTP Protocol Formats

FTP / SFTP / FTPS

FTP Upload during REC

Yes

FTP Servers Presets

4

Meta-Data Presets of Servers

4

Note for all kind of USB Adapter

The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder).
Please select the device which you are going to use:
WIFI dongle / 3G/4G dongle or a CAT Network adapter. The Adapter you going to be use must be a registered Adapter (see attached compatible list), cause all of these Adapter needs dedicate drivers, which to be implemented into the camcorder.In the case for LTE adapters, there must be done a pre-set of these dongles in your local PC first!

Recommendation for WIFI USB Adapters (EU only)

Please Note: Sometimes the Manufacturers change the Revision of the Chip-sets, but product name not changed, we can´t track such issues so may its possible that such a dongles even its mentioned here, may not work.
The Adapters below are work able in the 2,4 GHz and 5 GHz infrastructure.

WIFI Dongle 1

Sitecom WLA.1001

WIFI Dongle 2

EnGenius EUB1200AC /Realtek RTL8812AU

WIFI Dongle 3

ASUS USB1200AC /Realtek RTL8812AU

WIFI Dongle 4

D-LINK DWA-172 (revA1) /Realtek RTL8811AU

WIFI Dongle 5

EDIMAX EW-781UTC /Realtek RTL8811AU

WIFI Dongle 6

D-LINK DWA-171(revA1) /Realtek 8811AU

WIFI Dongle 7

TP-LINK Archer T4U /AC1200 Realtek8811AU not T4U V2.0 AC1300!!

WIFI Dongle 8

Wideland (over Amazon) ACWIFI DEWIFIC001A

Ethernet Dongle 1

EDIMAX EU-4208

Ethernet Dongle 2

Sitecom LN-030 V2 not Sitecom LN-030 V3

Ethernet Dongle 3

Hamlet HNU2GTX

Ethernet Dongle 4

D-LINK DUB-E100 (rev C1)

Recommendation for 3G/4G (LTE) Adapters

Dear Customer, for the most countries we have a recommendation of adapters, please download our info sheet for LTE support, below you find a special recommendation, which should work in the most countries.

LTE Specials 1

Universal LTE dongle
Huawei E8372LTE Wingle
So far works with Telekom/O2/Vodafone, others not tested yet.

IN-OUT's Connections

OUT HDMI

Yes, 3G

OUT HDSDI Format Max.

1080i/60p, 50p 8 bit 4:2:2 EE

OUT HDMI

Yes

OUT HDMI Format Max.

1920x1080 60/50p 8 Bit 4:2:2

OUT AV

Yes

OUT Audio Line

Yes, 2 times RCA

OUT Audio Headphone

Yes, 2 times 3.5 mm mini jack

IN Poolfeed HDSDI

Yes, 1.5 Gbit HDSDI

IN Genlock

Yes

IN Audio XLR MIC/LINE

Yes, 2 times +48V MIC/LINE

IN Audio AUX

Yes, 3.5mm Stereo mini jack

External Lens Connector

Yes, 12 pin standard

Time Code IN/OUT

Yes

Wired Remote IN

Yes, 2.5mm mini jack LANC

Wired Remote IN

Yes, 6 pin DIN

USB Host

Yes

USB Data Exchange (Storage)

Yes

System Connector

Yes, 68 Pin

EVF Connector

Yes, for VF-P EVF's

EVF and LCD

Operation Panel Type

LCD

Operation Panel Resolution

410k

Operation Panel Size Diagonal in inch

4.5

Electronic Viewfinder (EVF) Type

LCOS

Electronic Viewfinder (EVF) Resolution

1,22 Mp

Electronic Viewfinder (EVf) Size diagonal in inch

0.45

Special Indications

Histogram and expanded focus

Power and Environment's Specifications

Power AC

Yes, over option AC/DC Adapter

Power DC

Yes, 12V Headroom (10.5V-17V) over V Mount or 4 Pin DC XLR

Battery Types

IDX V Mount

Power Consumption

Approximate 28W (Camera body with provided lens and LCD/VF On single recording mode, default settings)

Operation Temperature in Celsius degrees

0 to 40

Storage Temperature in Celsius degrees

-20 to 50

Operation Humidity in %

35 to 80

Storage Humidity under %

85

Mechanical Information

Weight in kg

4,8 including battery

Measurements (WxHxD) in mm

W 231 x H 243 x D 419

Measurements additional notes

Without Studio Adapter

Package Includes

Instructions

Yes

Software

Yes, Clip Manager

Additionals

Yes, Fujinon Lens, Anti reflective film, Microphone, not include camera tripod plate KA-551

General Editing Note

NOTE:

Simulated pictures. The values for weight and dimensions are approximate. E.&O.E. Design and specifications subject to change without notice.
