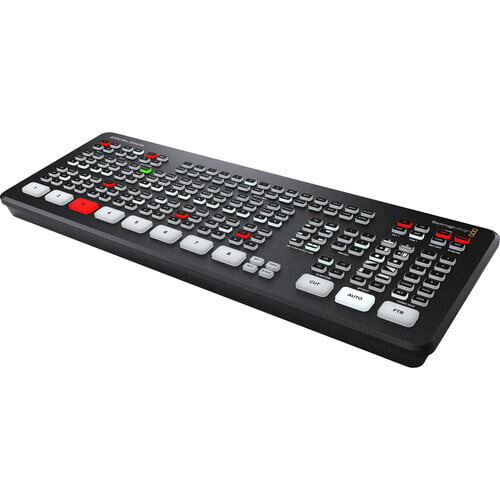

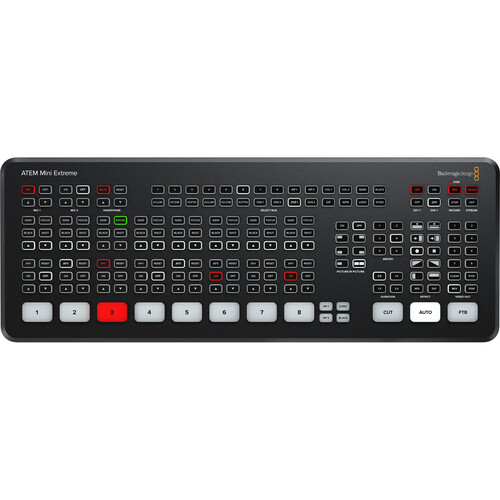

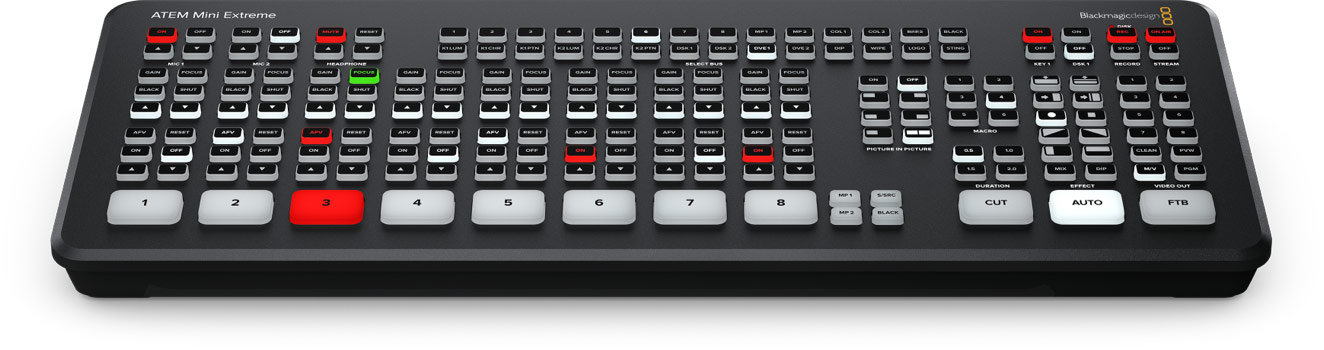

Blackmagic Design Atem Mini Extreme

Available M/E Layers

9 M/E

Effect Types

2 x DVE
4 x Luma Key
4 x Chroma Key

Graphics Memory

20 Images

Downstream Keys

2 x Chroma, Luma, DVE

Generators

5 x Pattern
2 x Color

Audio Mixing

2-Channel Mixing

Switching Type

Pushbutton, Software

Processing Resolution

1080p

Number of Video Input Sources

8

Video Input Connectors

8 x HDMI

Input Video Format

HDMI (10-Bit 4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps

Audio Input Connectors

2 x 1/8" / 3.5 mm TRS Stereo Analog Female

Input Audio Format

Analog

Embedded Audio Input

HDMI: 2-Channel (per Input)

Video Output Channels

2

Video Output Connectors

2 x HDMI

Output Video Format

HDMI (10-Bit 4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps

Audio Output Connectors

1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female

Embedded Audio Output

HDMI: 2-Channel

Multiview Output

16-Way Multiview viaHDMI

Other I/O

1 x RJ45
2 x USB Type-C

HDCP Support

None

IP Video

H.264:
1920 x 1080 Encoding

Transport Protocols

RTMP

Simultaneous Streams

1 Streams

Recording Modes

1920 x 1080p up to 60 fps (MP4)

OS Compatibility

macOS 10.15
macOS 11.1 or Later
Windows 10

Power Connector

1 x Barrel (12 VDC) Input

Power Consumption

Device: 36 W

Operating Temperature

41 to 104°F / 5 to 40°C

Storage Temperature

14 to 140°F / -10 to 60°C

Operating Humidity

0 to 70%

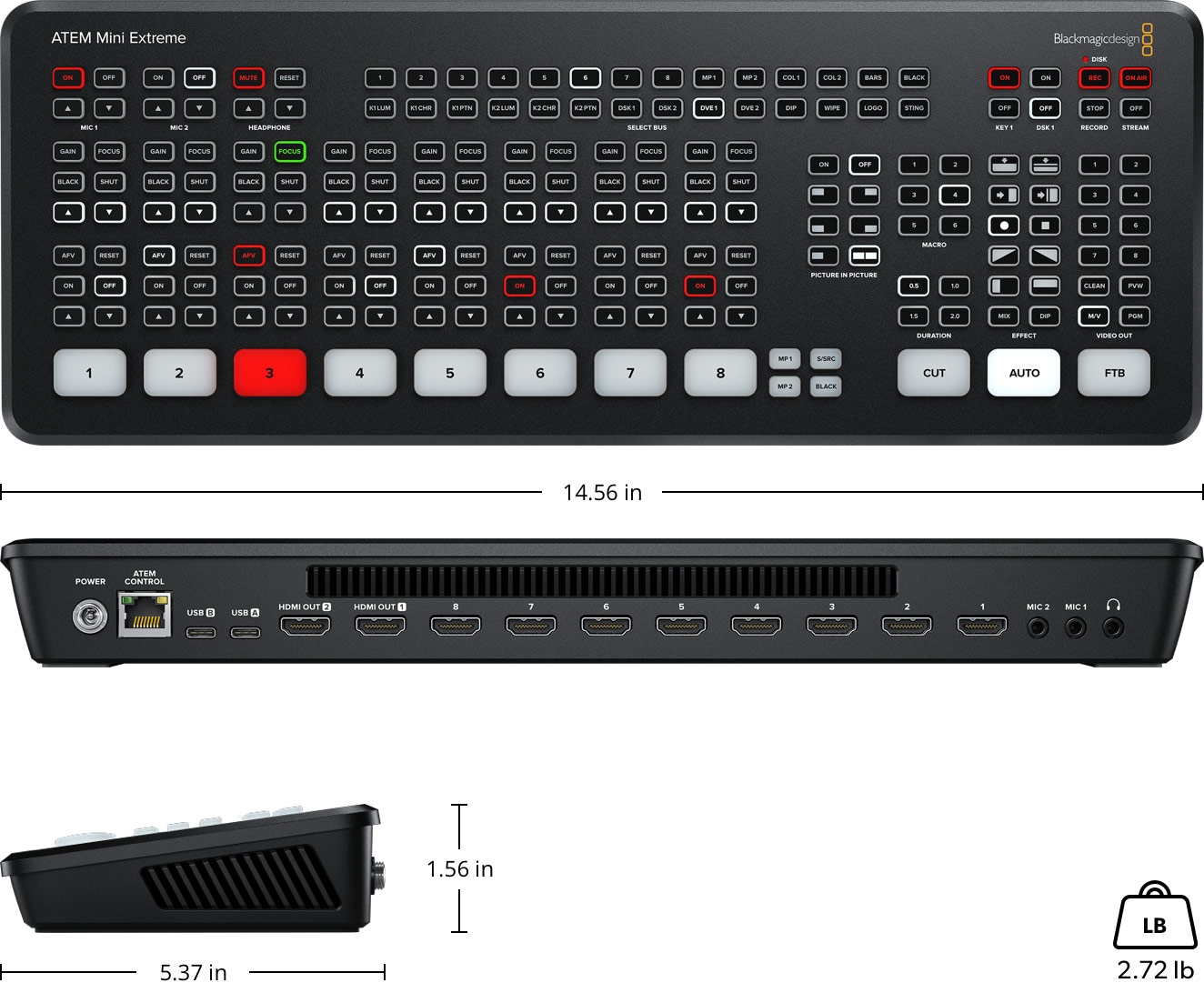

Dimensions

14.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.96 cm

Weight
