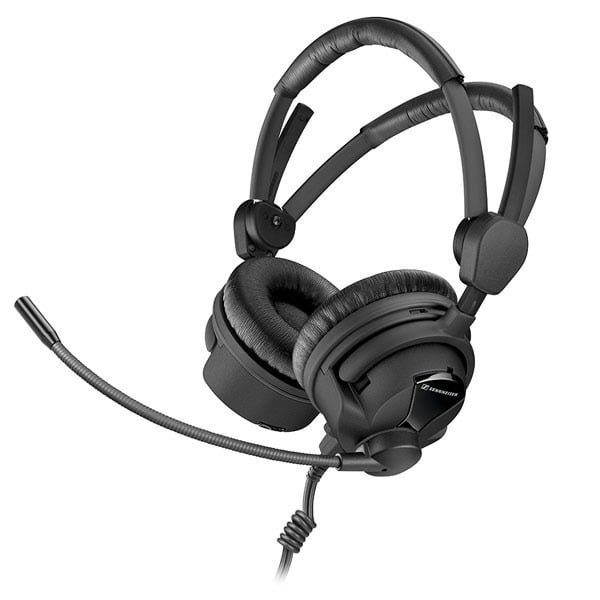

Sennheiser HME26-II-100(4) P48 Stage & Monitoring Headset - TV, Radio, Broadcast Applications

Impedance

100 Ohm stereo (headphones)

Characteristic SPL

1 kHz, 1 mW: 105 dB

1 kHz, 1 V: 115 dB

Pick-up pattern

cardioid (BKE 4-4)

Max. Sound pressure level (active)

ActiveGard™ switched off: 128 dB at 1 kHz, 200 mW

ActiveGard© activated: 105 dB at 1 kHz, 200mW

Frequency response (Microphone)

40 to 20.000 Hz

Transducer principle (Microphone)

pre-polarized condenser microphone

Frequency response (Headphones)

40 to 18.000 Hz

Contact pressure

3,9 N

Ear coupling

supra-aural

Weight

(w/o cable and w/o connector) approx. 205 g

Min. terminating impedance

4700 Ω

Storage temperature

-55 °C to 70 °C

Operating temperature

-15 °C to 55°C

Maximum sound pressure level (passive)

150 dB; 0,5 % THD

Output voltage

4 mV / Pa +/- 2,5 dB

Operating voltage (stand alone)

5 - 15 V DC

Transducer principle (headphones)

dynamic, closed
