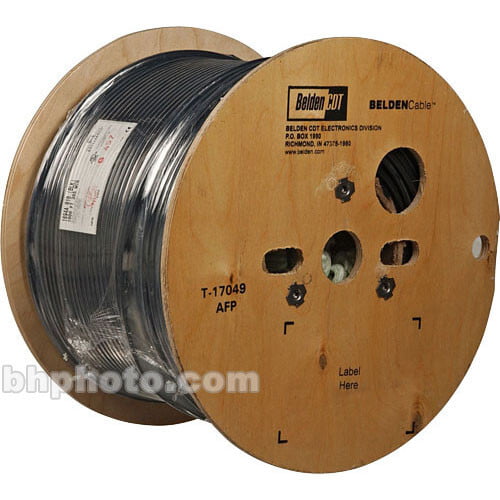

Belden 1694A RG6 Low Loss Serial Digital Coaxial Cable (305M, Black)
Styled in black and measuring 500' in length, the 1694A RG6 from Belden is a roll of low-loss serial digital coaxial cable. An 18 AWG spool of RG-6/U type cable, the 1694A RG6 utilizes a bare copper conductor with gas-injected foam HDPE insulation, a Duofoil tinned-copper braid shield, and a PVC jacket.
Key Features
- 18 AWG
- Bare Copper Conductor
- Gas-Injected Foam HDPE Insulation
- Duofoil Tinned-Copper Braided Shield
- PVC Jacket
Belden 1694A Specs
Conductor | Coax #: 1 |
Insulation | Material: Gas-Injected FHDPE (Foam High-Density Polyethylene) |
Outer Shield | Layer 1: |
Outer Jacket Material | PVC (Polyvinyl Chloride) |
Max. Recommended Pulling Tension | 69 lb / 31.3 kg |
Min. Bend Radius | Minor Axis: 2.75" / 7 cm |
Compliance | NEC/(UL) Specification: CMR |
Suitability | Indoor |
Plenum/Non-Plenum | Non-Plenum |
Impedance | 75 Ohms |
Inductance | (µH/1' [0.3 m]): 0.106 |
Capacitance | (pF/1' [0.3 m]): 16.2 |
Velocity of Propagation | 82% |
Delay | (ns/1' [0.3 m]): 1.240 |
Conductor DC Resistance | DCR @ 68°F / 20°C (Ohm/1000' [304.8 m]): 6.4 |
Outer Shield DC Resistance | DCR @ 68°F / 20°C (Ohm/1000' [304.8 m]): 2.8 |
Attenuation | Frequency in MHz, Attenuation dB 100' / 30.5 m |
Minimum Return Loss | @ Start Frequency of 5 MHz: |
Operating Voltage | UL: 300 V, RMS |
Operating Temperature | -22 to 167°F / -30 to 75°C |
UL Temperature Rating | 167°F / 75°C |
Length | 500' / 152 m |
Weight | 24 lb / 10.9 kg |
Packaging Info
Package Weight | 22 lb |
Box Dimensions (LxWxH) | 12 x 12 x 8.5" |
