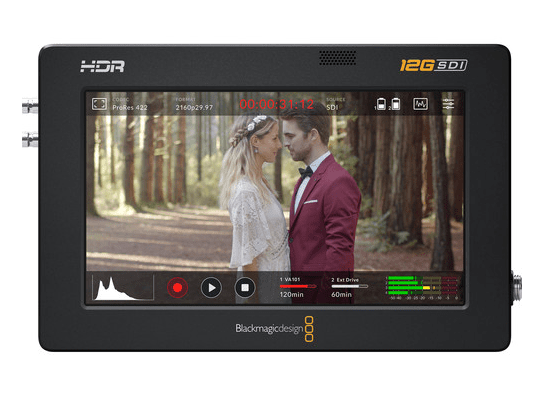

Blackmagic Design Video Assist 5" 12G-SDI/HDMI HDR Recording Monitor
Add professional monitoring and high-quality recording to virtually any camera with the Video Assist 5" 12G-SDI/HDMI HDR Recording Monitor from Blackmagic Design. It features a bright 5", 1920 x 1080 display with 2500 cd/m² brightness to help you frame and focus your shots,
Specification
Display
Panel Type | TFT LCD |
Display Size | 5.0" / 12.7 cm |
Screen Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Touchscreen | Yes |
Maximum Brightness | 2500 cd/m2 |
Pixels Per Inch (ppi) | 440 ppi |
Image Controls | Histogram, Picture-in-Picture, RGB Parade, Vectorscope, Waveform |
I/O
Video | 1 x HDMI Type A (HDMI 2.0a) Input |
HDCP Support | No |
Embedded Audio | HDMI: 8-Channel |
Audio | 1 x 3.5 mm Headphone Output |
Built-In Speaker | 1 |
Power | 1 x Barrel Input |
Other I/O | 1 x USB Type-C |
Card Slot | 1 x SD |
Wi-Fi | None |
Format Support
Video Format | SDI (10-Bit 4:2:2 RGB) |
Gamma Curve | HDR-HLG, Rec2020, Rec709 |
Recording
Pre-Roll Record | None |
Encoding Formats | Up to 4096 x 2160 |
Maximum Audio Tracks | 16 |
Recording Media | 1 x SDXC (UHS-II) |
Power
DC Input Power | 12 VDC |
Battery Type | 2 x L-Series |
Environmental
Operating Humidity | 0 to 90% |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
General
Dimensions (W x H x D) | 5.83 x 3.54 x 1.44" / 14.81 x 8.99 x 3.66 cm |
Weight | 14.46 oz / 409.94 g |
Warranty Length | Limited 1-Year Warranty |
Packaging Info
Package Weight | 0.82 kg |
Box Dimensions (LxWxH) | 8.6 x 7.8 x 3.3" |
