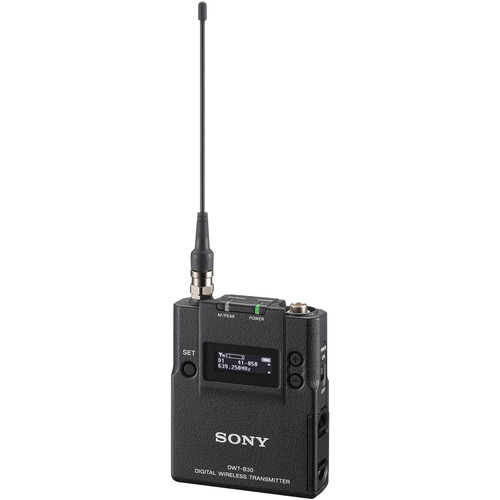

Sony DWT-B30/L DWX Gen3 Digital Wireless Bodypack Transmitter
The Sony DWT-B30 is a is a third-generation DWX Digital Series wireless bodypack transmitter compatible with the DWR-R03D rackmount and DWR-S03 slot-in receivers as well as all previous DWX Digital Series receivers.
Specifications
System
Wireless Transmission | UHF |
RF Frequency Band | 470.125 to 607.875 MHz |
RF Bandwidth | 140 MHz |
Frequency Step Size | 25 kHz |
Max Operating Range | 300' / 91.4 m |
Latency | 0.7 to 1.8 ms |
Encryption | AES 256, Proprietary |
Modulation | Proprietary |
Transmitter
Form Factor | Bodypack |
RF Output Power | 2 / 10 / 25 mW (Switchable) |
Audio I/O | 1 x Proprietary 4-Pin Male Input (Lockable) |
Muting | None |
Audio Input Level | -22 to +24 dBu (Max) |
Gain Range | 0 Up to +48 dB (3 dB Steps) |
Frequency Response | 20 Hz to 22 kHz |
Sync Method | Proprietary |
Antenna | 1 x 1/4 Wave Flexible Whip, Detachable (Beltpack) |
Power Requirements | Battery, Bus Power (USB) |
Battery Type | 2 x AA |
Approx. Battery Life | 6.5 Hours (Alkaline) |
USB/Lightning Connectivity | 1 x Micro-USB |
Display & Indicators | OLED (Audio Level, Multifunction, Peak, Power, RF Output Power, Sync) |
Housing | Magnesium |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Dimensions | 2.5 x 0.7 x 2.9" / 63 x 17 x 73 mm (without Antennas) |
Weight | 4.4 oz / 125 g (with Batteries) |
General
Packaging Info
Package Weight | 1.71 lb |
Box Dimensions (LxWxH) | 17.6 x 6.4 x 2.7" |
