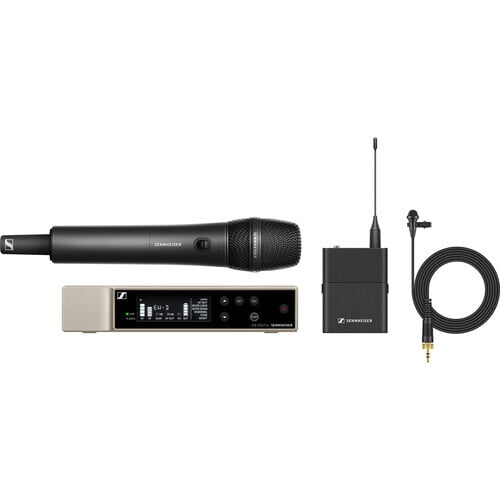

Sennheiser EW-D ME2/835-S SET Digital Wireless Combo Microphone System (R1-6: 520 to 576 MHz)

• Frequency range

  470.2 - 526 MHz

  520 - 576 MHz

  552 - 607.8 MHz

  606.2 - 662 MHz

  630 - 662 MHz

  662 - 693.8 MHz

  823.2 - 831.8 MHz & 863.2 - 864.8 MHz

  925.2 - 937.3 MHz

  1785.2 - 1799.8 MHz



• THD, total harmonic distortion

  ≤ -60 dB for 1 kHz @ -3 dBfs input level



• Operating temperature

  -10 °C - +55 °C (14 °F - 131 °F)



• Operating relative humidity

  5 - 95 % (non-condensing)



• Audio frequency response

  20 Hz - 20 kHz (-3 dB) @ 3 dBfs



• System Latency

  1.9 ms

EW-D EM

• Dimensions

  212 x 44 x 189 mm



• Weight

  approx. 1000 g (without antennas and power supply)



• Current consumption

  ≤ 300 mA



• Input voltage range

  11 - 13 V ⎓



• Transmission power

  BLE: max. 10 mW EIRP



• Audio output level

  18 dBu max.

EW-D SKM-S

• Dimensions

  50 x 268 mm (incl. MMD 835 microphone module)

  40 x 200 mm (without microphone module)



• Weight

  approx. 304 g (incl. MMD 835 microphone module)

  approx. 195 g (without microphone module)



• Power supply

  2 AA batteries 1.5 V (alkaline manganese)

  or BA 70 rechargeable battery pack



• Current consumption

  < 300 mA



• Input voltage range

  2.0 - 4.35 V



• Transmission power

  Audio link: 10 mW

  ERP (Range Y1-3): 12 mW ERP

  BLE: max. 10 mW EIRP

MMD 835 (Microphone Module)

• Dimensions

  405 x 350 x 73 mm



• Sound pressure level (SPL)

  154 dB



• Transducer principle

  dynamic



• Weight

  3.1 kg



• Pick-up pattern

  cardioid



• Sensitivity

  2.1 mV/Pa

ME 2

• Connector

  3.5 mm jack



• Frequency response

  50 to 18,000 Hz



• Max. sound pressure level

  130 dB



• Cable length

  approx. 1.60 m



• Transducer principle

  pre-polarized condensor microphone



• Pick-up pattern

  omni-directional



• Sensitivity in free field, no load (1kHz)

  17 mV/Pa



• Equivalent noise level

  32 dB



• Power supply

  7.5 V
