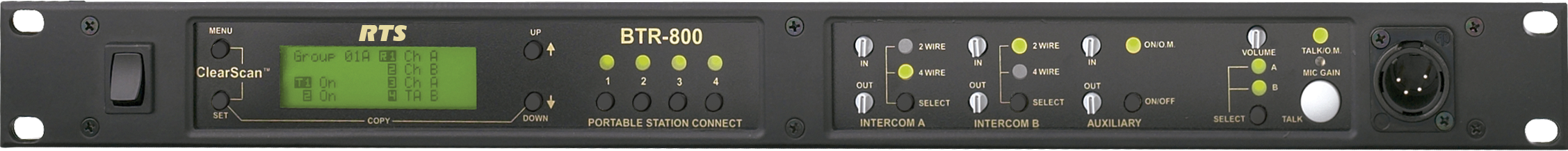

RTS BTR-800- H3REUR
$7,170.34

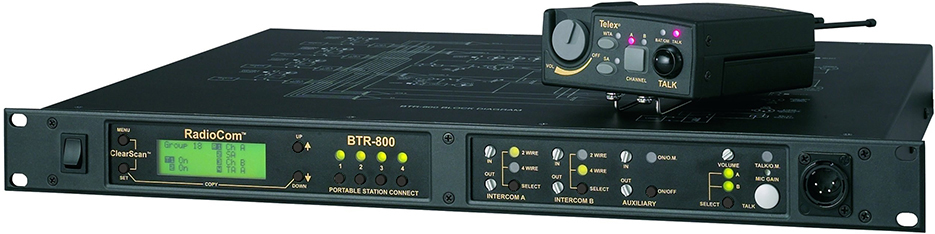

The RadioCom BTR-800 UHF-synthesized wireless intercom systems offer the ultimate in reliable, high-performance, high fidelity full-duplex communications. The BTR-800 system includes the BTR-800 frequency-agile base station, working with up to four TR-800 or TR-825 frequency-agile beltpacks. The BTR-800 base station provides full-duplex communications with the beltpacks.
Product Details
| Frequency Band of Operation | 470 - 608 MHz, 614 - 740 MHz in 18 MHz TX and RX bands |
| Transmit Power | 100 mW Max. (High), 10 mW (Normal) |
| Power Requirements | 100-240 VAC, 50-60 Hz, IEC receptacle |
| Wireless Technology | UHF |
| Form Factor | Rackmount |
| Storage Temperature | -4°F to 130°F (-20°C to 55 |
Specifications | |
| User Capacity | 4 |
| Battery Type | Standard Alkaline Batteries |
| Battery Life | 12 hrs |
| Frequency Response | 300 Hz-8 kHz |
| Antenna | ½ Wave (supplied), TNC Male Connector |
| Type | Two Synthesized Transmitters, 712 channels each |
| 4-Wire Input and Output | Level Adjustable |
| Auxiliary Input | Adjustable |
| Auxiliary Output | Adjustable |
| Microphone Input Sensitivity | 9 |
| Local Headset Output | 40 mW output into 600Ω |
| Modulation Type | FM |
| Deviation | 40 kHz (35 kHz Europe) |
| RF Frequency Stability | 0.005 |
| Modulation Limiter | Peak-Responding Compressor |
| RF Frequency Range | 470 - 608 MHz, 614 - 740 MHz in 18 MHz TX and RX bands |
| FCC ID | B5DM514 |
| Stage Announce Output | Internally Adjustable |
| Stage Announce Relay | Dry contact, rated at 1 Amp, 24V Max |
| Radiated Harmonics and Spurious | Exceeds FCC specifications |
