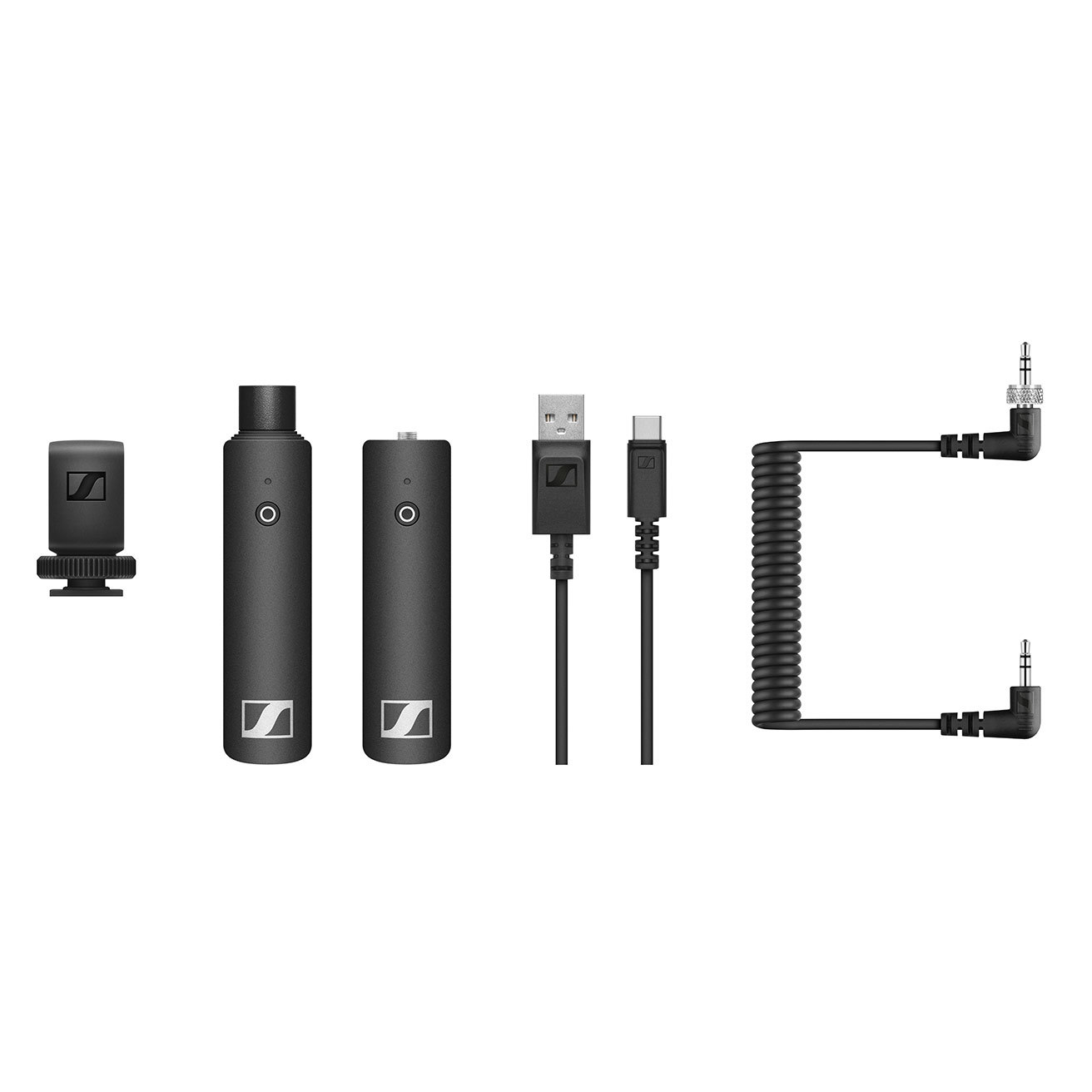

Sennheiser XSW-D PORTABLE INTERVIEW SET

Dimensions

XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm

XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm

XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm

XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm

XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm

XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm

XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm

THD, total harmonic distortion

< 0.1 %

Charging time

typ. 3 h

Audio output

max. 12 dBu

Operating temperature

-10 °C to +55 °C (14 °F to 131 °F)

Signal-to-noise ratio

≥ 106 dB

Operating time

up to 5 h

Modulation

GFSK with TDMA

Battery Specification

Li-Ion

Capacity

850 mAh

Codecs

aptX® Live

Frequency range

2,400 - 2,483.5MHz

Max. Input voltage

typ. 5.0 V

Transmission power

max. 10 mW

Voltage

3.7 V

Operating relative humidity

95 % (non-condensing)

Latency

< 4 ms

Temperature Range

0 °C - 60 °C (32 °F - 140 °F)

Audio frequency response

3.5 mm Jack/XLR: 80 - 18,000 Hz

6.3 mm Jack: 10 - 18,000 Hz
