Blackmagic Design HyperDeck Extreme 4K HDR

Compatibility

Blackmagic Design ATEM Mini

Video Formats

DCI 4K: 25, 24, 23.98
UHD 4K: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
DCI 2K: 25, 24, 23.98
DCI 2K PsF: 25, 24, 23.98
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
525i: 59.94
625i: 50

Display

7" Capacitive Touchscreen HDR LCD

Resolution

1920 x 1200

Video Sampling

10-Bit, 4:2:2 YUV

Color Space

Rec 601, Rec 709, Rec 2020

SMPTE Standards

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, and SMPTE 2084

Supported Codecs

ProRes HQ QuickTime
ProRes 422 QuickTime
ProRes LT QuickTime up to 2160p60
ProRes 4444 (Playback Only)
H.265 High
H.265 Medium
H.265 Low up to 2160p60

Compatible Operating Systems

Mac 11.1 Big Sur
Mac 12.0 Monterey or Later
Windows 10 and 11

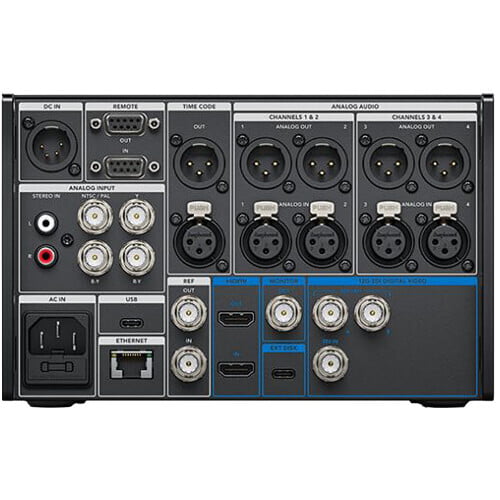

USB

1 x USB Type-C (USB 3.1 / 3.2 Gen 1) Female Output

Video

1 x BNC (12G-SDI) Input
2 x BNC (12G-SDI) Output
1 x BNC (Component) Input
1 x HDMI Type A (HDMI 2.0) Input
1 x HDMI Type A (HDMI 2.0) Output
1 x BNC (3G-SDI) Monitor Output
1 x USB Type-C Output

Audio I/O

4 x XLR 3-Pin Input
4 x XLR 3-Pin Output
1 x 2RCA Input

Other I/O

1 x 9-Pin DSub, RS-422 Input
1 x 9-Pin DSub, RS-422 Output
1 x 3-Pin XLR, Timecode Input
1 x 3-Pin XLR, Timecode Output
1 x BNC, Reference Input
1 x BNC, Reference Output
1 x RJ45 Ethernet
1 x USB Type-C Input

Power Source

AC Input (Built-In)

AC Input Power

100 to 240 VAC, 50 / 60 Hz

DC Input Power

12 VDC

Power Consumption

190 W

Operating Temperature

32 to 104°F / 0 to 40°C

Operating Humidity

0 to 90% (Non-Condensing)

Storage Temperature

-4 to 140°F / -20 to 60°C

Storage Humidity

0 to 90% (Non-Condensing)

Dimensions

13.15 x 8.28 x 5.14" / 33.4 x 21.03 x 13.06 cm

Weight
