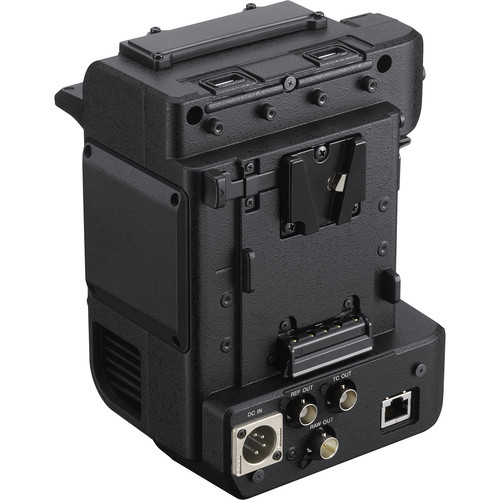

Sony XDCA-FX9 Extension Unit for PXW-FX9 Camera
Add the XDCA-FX9 Extension Unit from Sony to the back of your PXW-FX9 camera to add an ENG-style shoulder mount and additional I/O and power to your camera. The unit features a 4-pin XLR DC power output to power accessories and other equipment, as well as three BNC outputs for raw video, a reference signal, and timecode.
Specification
Camera Interface | Multi-Pin Camera Mount |
Supported Video Formats | 16-Bit Raw Video up to DCI 4K |
LAN Connectors | 1 x RJ45, 1000/100/10BASE-T |
Video Outputs | 1 x BNC, Raw |
Inputs | 1 x D-SUB 15-Pin (Wireless Receiver) |
Other Connectors | 2 x USB Type-A |
Power Input | 1 x 4-Pin XLR |
Power Output | 1 x 4-Pin LEMO-Type |
Power | 12 VDC, 11 to 17 V |
Power Consumption | 43 to 69 W |
Dimensions | 6.9 x 6.2 x 5.4" / 177.3 x 157.3 x 136.5 mm |
Weight | 2.2 lb / 1 kg |
Packaging Info
Package Weight | 3.765 lb |
Box Dimensions (LxWxH) | 10.4 x 9.9 x 9.3" |
