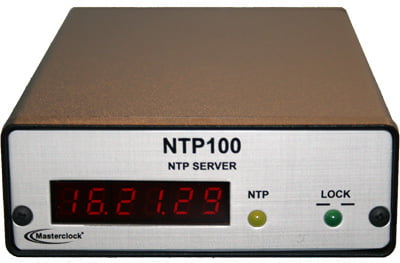

Masterclock NTP100-GPS-RCVR
$1,825.00
Tags:
The NTP100-GPS is an NTP (Network Time Protocol) server that synchronizes to GPS satellites and distributes NTP reference signals via Ethernet. When synchronized to the atomic clocks in GPS and GLONASS satellites, the long term accuracy of the device is the same as the atomic clock of the GNSS.
Product Details
Specifications
Time Reference
- When synchronized to atomic clocks in GPS satellites the long term accuracy of the NTP100 is the same as the atomic clock of the GPS
- After initial synchronization and (if) upon loss of GPS signal the NTP100 will revert to an internal temperature compensated crystal oscillator and typically maintain accuracy of <165 ms per day
Power Supply
- DC input (9-28 VDC)
- Power consumption: <7.5W
- Includes an external 24 VDC wall-mount power supply with locking DC plug, UL & CE listed
Connectors
- RJ45 ─ 10/100 MB
- DC input ─ 2.1 mm male jack
- Antenna ─ SMA
- RS-232 – 9 pin male
- USB – for configuration via WinDiscovery
Network Compatibility
- NTP unicast, multicast, or broadcast mode
- Supports:
- NTP v2 (RFC 1119)
- NTP v3 (RFC 1306)
- NTP v4 (RFC 5905)
- DHCPv4, DHCPv6 for automatic acquisition of network address, name servers, and timeserver configuration
- Telnet/SSH communication
- IPv4/IPv6 compatible
- SNMP with custom MIB
Rack Mount
- Optional RM4 rack mount kit available
Physical Size
- 6.44 x 4.06 x 1.44 in (16.35 x 10.32 x 3.65 cm)
- 16 oz (453.6 g)
Case
- Cover: black aluminum
- Front/rear panel: clear anodized aluminum
Compliance
- CE Marked – Available for sale in EU
- FCC, Part 15, Class B, emissions
