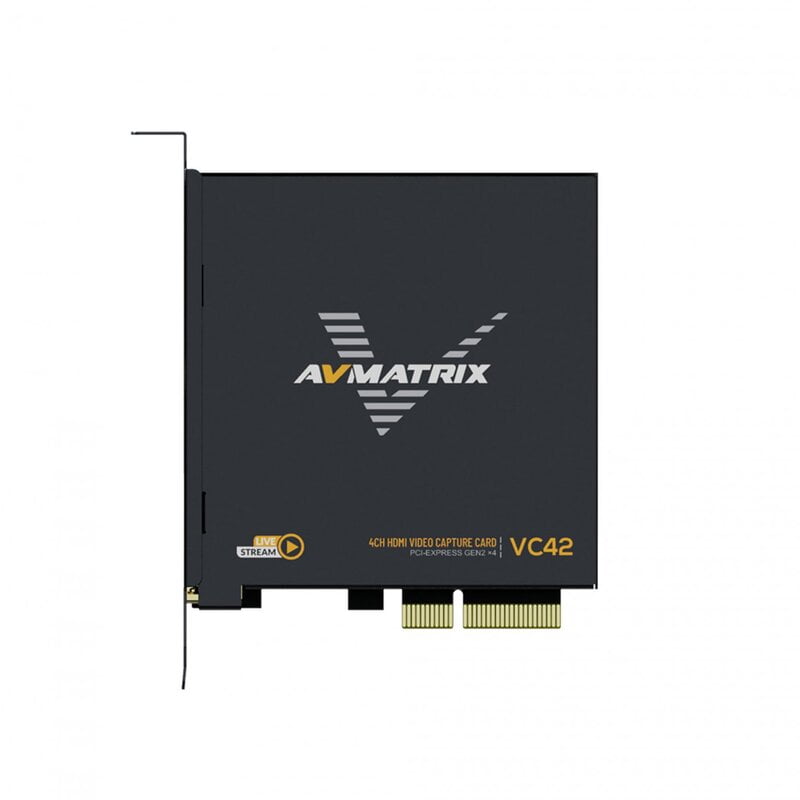

AVMATRIX 4-CH HDMI PCIE Capture Card

SPECIFICATION

System Connection	PCIe 2.0 x4
Video Inputs	4 x HDMI (HDMI 1.4) Female
Audio Inputs	None
Simultaneous Multi-Input Support	Yes: 4 Simultaneous Inputs

Format Support

Input Video Format	HDMI 1080p 60 fps
Input Audio Format	LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
Output Video Format	HDMI 1080p 25/30/50/59.94/60 fps UXGA (1600 x 1200) 60 fps HD+ (1600 x 900) 60 fps WXGA+ (1440 x 900) 60 fps SXGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps 1280 x 720 (Non-Standard WXGA) 25/30/50/59.94/60 fps XGA (1024 x 768) 60 fps SVGA (800 x 600) 30/60 fps 576p 30/60 fps 480p 30/60 fps
Output Audio Format	LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
Embedded Audio	HDMI

Standards

HDR Compatibility

Not Specified by Manufacturer

Hardware

OS Compatibility	Windows 7 or Later Linux 18.4 or Later *As of August, 2022: Check with manufacturer for the most up-to-date compatibility
Power Consumption	Device: 2 W

Environmental

Operating Temperature	32 to 140°F / 0 to 60°C
Storage Temperature	-4 to 158°F / -20 to 70°C
Operating Humidity	5 to 90% (Non-Condensing)

General

Dimensions	4.7 x 3.5 x 0.9" / 120.1 x 88.4 x 21.6 mm
Weight	5.3 oz / 150 g

Packaging Info

Package Weight	0.405 lb
Box Dimensions (LxWxH)	6.3 x 5.6 x 1.4"
