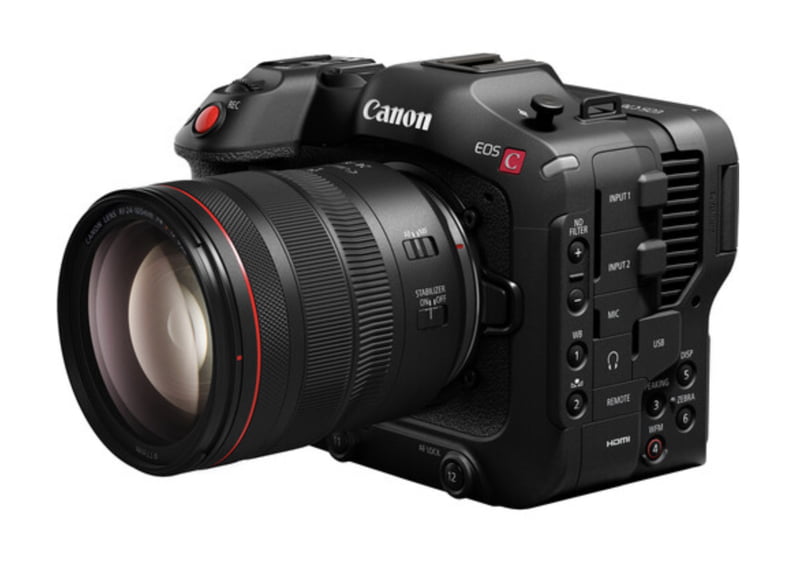

Canon EOS C70 Cinema Camera Kit with 24-105mm Zoom Lens

Lens Mount

Canon RF

Lens Communication

Yes, with Autofocus Support

Sensor Resolution

Sensor Type

26.2 x 13.8 mm (Super35) CMOS

Pixel Pitch

6.4 µm

Image Stabilization

Digital, 5-Axis

Built-In ND Filter

Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64), 8 Stop (1/256), 10 Stop (1/1024) ND Filters

Capture Type

Stills & Video

Shutter Type

Electronic Rolling Shutter

Shutter Speed

1/12 to 1/2000 Second

ISO Sensitivity

Photo/Video
160 to 25,600 (Extended: 100 to 102,400)

Gain

-6 to 54 dB (Native)
-2 to 54 dB (Expanded)

Shutter Angle

11 to 360°

Advertised Dynamic Range

16 Stops

White Balance

2000 to 15,000K
Presets: AWB, Daylight, Set A, Set B, Tungsten

Recording Modes

XF-AVC 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/50i/50p/59.94i/59.94p [24 to 410 Mb/s]
UHD 4K (3840 x 2160) at 24.00p/25p/29.97p/50i/50p/59.94i/59.94p [24 to 410 Mb/s]
DCI 2K (2048 x 1080) at 23.98p/24.00p/25p/29.97p/50i/50p/59.94i/59.94p [24 to 410 Mb/s]
Full HD (1920 x 1080) at 23.98p/24.00p/25p/50i/50p/59.94i/59.94p [24 to 410 Mb/s]
HD (1280 x 720) at 23.98p/24.00p/25p/29.97p/50i/50p/59.94i/59.94p [24 to 410 Mb/s]
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 119.88p
UHD 4K (3840 x 2160) at 119.88p
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 8-Bit
DCI 2K (2048 x 1080) at 179.82p
Full HD (1920 x 1080) at 179.82p
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:0 8-Bit
DCI 2K (2048 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p [24 to 35 Mb/s]
Full HD (1920 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p [24 to 35 Mb/s]
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p [135 to 225 Mb/s]
UHD 4K (3840 x 2160) at 50p/59.94p [135 to 225 Mb/s]
2840 x 1080 at 23.98p/24.00p/25p/29.97p/50p/59.94p [50 Mb/s]
Full HD (1920 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p [50 Mb/s]
HD (1280 x 720) at 50p/59.94p [12 Mb/s]
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:0 10-Bit
DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p [100 to 170 Mb/s]
UHD 4K (3840 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p [100 to 170 Mb/s]
DCI 2K (2048 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p [35 Mb/s]
Full HD (1920 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p [35 Mb/s]
HD (1280 x 720) at 50p/59.94p [9 Mb/s]
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 119.88p
UHD 4K (3840 x 2160) at 119.88p
DCI 2K (2048 x 1080) at 179.82p
Full HD (1920 x 1080) at 179.82p
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:0 8-Bit
DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p [150 Mb/s]
UHD 4K (3840 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p [150 Mb/s]
DCI 2K (2048 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p [35 Mb/s]
Full HD (1920 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p [35 Mb/s]
HD (1280 x 720) at 50p/59.94p [8 Mb/s]
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 8-Bit
DCI 4K (4096 x 2160) at 119.88p
UHD 4K (3840 x 2160) at 119.88p
DCI 2K (2048 x 1080) at 179.82p
Full HD (1920 x 1080) at 179.82p

Sensor Crop Modes

Super35 / APS-C
2K (2048 x 1080)

Variable Frame Rates

DCI 4K: 12 to 119.88 fps
DCI 2K (Windowed): 12 to 179.82 fps

Gamma Curve

Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Wide DR

Recording Limit

Unlimited

Video System

NTSC/PAL

Built-In Microphone Type

Stereo
Mono

Audio Recording

4-Channel 24-Bit 48 kHz LPCM Audio

External Recording Modes

4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p
UHD 4K (3840 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p
Full HD (1920 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p
DCI 2K (2048 x 1080) at 23.98p/24.00p/25p/29.97p/50p
HD (1280 x 720) at 23.98p/24.00p/25p/29.97p/50p/59.94p

IP Streaming

Yes

Image Sizes

JPEG
4096 x 2160
3840 x 2160
2048 x 1080
1920 x 1080

Aspect Ratio

16:9

Image File Format

JPEG

Bit Depth

12-Bit

Media/Memory Card Slot

Dual Slot: SD/SDHC/SDXC

Video I/O

1 x HDMI Output

Audio I/O

2 x Mini XLR Mic/Line (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm TRS Stereo Input
1 x 1/8" / 3.5 mm TRS Stereo Headphone Output

Power I/O

1 x Barrel (11.5 to 20 VDC) Input

Other I/O

1 x USB Type-C Control/Video Input/Output
1 x BNC (Timecode) Input/Output
1 x 2.5 mm Sub-Mini (LANC) Control

Wireless

None

Global Positioning (GPS, GLONASS, etc.)

GPS
*Adapter Required

Size

3.5"

Resolution

2,760,000 Dot

Display Type

Articulating Touchscreen LCD

Focus Type

Auto and Manual Focus

Focus Mode

Automatic, Continuous-Servo AF, Manual Focus

Operating Temperature

32 to 104°F / 0 to 40°C (Recommended)

Operating Humidity

85% (Recommended)

Battery Type

Canon BP-A Series

Tripod Mounting Thread

2 x 1/4"-20 Female (Bottom)
1 x 3/8"-16 Female (Bottom)
1 x 1/4"-20 Female (Side)

Accessory Mount

1 x 1/4"-20 Female
2 x Cold Shoe Mount

Dimensions (W x H x D)

5.1 x 6.3 x 4.6" / 130.2 x 160 x 115.9 mm

Weight

2.58 lb / 1.17 kg (Body Only)
2.95 lb / 1.34 kg (With Battery)
