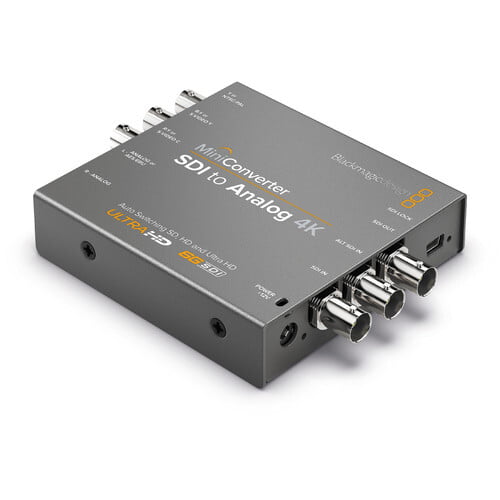

Blackmagic Design Mini Converter - SDI to Analog 4K

Video Input

1 x 6G-SDI
1 x 6G-SDI redundant input

Video Output

3 x BNC connectors
Analog SD/HD component, NTSC/PAL composite, and S-Video

Multi-Rate Support

Auto detection of SD, HD, or 6G SDI signals

Reclocking

Yes

Audio Input

Embedded audio from SDI input

Audio Output

2 x 1/4" jack, 2 channels of analog or AES/EBU digital audio

Format Support

SD:
NTSC 525/29.97 and 525/23.98
PAL 625/25

HD:
720p 59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60

2K:
2048x1080PsF 23.98/24/25
2048/1080p 23.98/24/25

UHD/4K
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24

SDI Compliance

SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, and ITU-R BT.601

SDI Video Rates

Switchable between SD, HD, 3G, and 6G SDI

SDI Video Sampling

4:2:2

SDI Audio Sampling

24-bit, 48 kHz

SDI Color Precision

4:2:2

SDI Color Space

YUV

SDI Auto Switching

Automatically detects SD, HD, 3G, or 6G-SDI

Analog Format Support

SD:
NTSC 525/23.98 and 525/29.97
PAL 625/25

HD:
720p 50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30

Analog Color Precision

4:2:2

HDMI Color Space

YUV

Format Conversion

HD down conversion

Settings Control

DIP switches or USB software for Mac PS X and Windows

Firmware Upgradeable

Via USB 2.0

Power Supply

12 VDC

Power Consumption

8.04 W

Operational Voltage Range

12 VDC

Operating Temperature

32 to 104° F (0 to 40 ° C)

Storage Temperature

-4 to 113° F (-20 to 45 ° C)

Relative Humidity

0 to 90% non-condensing

Dimensions

4.84 x 3.63 x 0.90" (12.29 x 9.22 x 2.29 cm)

Weight

10.68 oz (302.77 g)
