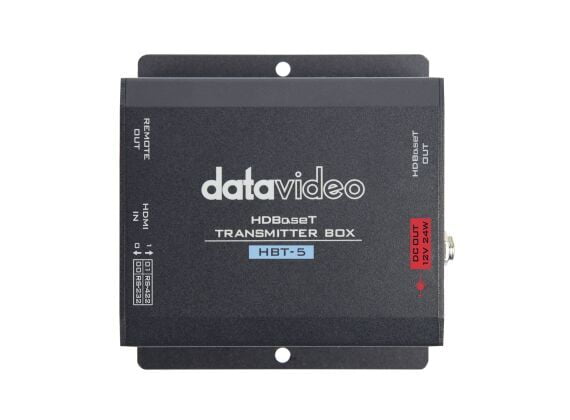

Datavideo HBT-5 HDBaseT Transmitter Box (HDMI)
HBT-5 transmitter can be powered by the same single power source using Power-over-Ethernet (PoE), easy to install for various applications. Support 12V power out for remotely located equipment.
SPECIFICATION
Model Number
HBT-5
Video/Audio Input
HDMI x1
Video/Audio Output
HDBaseT RJ-45 x1
Supported Video Format
3840x2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
525i59.94 NTSC, 625i50 PAL
Video Process
4K2K30 4:4:4 8bit
4K2K60 4:2:0 8bit
Video bandwidth
Single-link 340MHz [10.2Gbps]
DVIP
---
RS-422/ RS-232
YES
Power
DC 12V
HDBaseT Distance
1080p@60 60m (198ft) by CAT6 cable
4K2K@30 35m (114ft) by CAT6 cable
HDMI compliance
HDMI Deep Color, full 3D & 4K2K@30
HDCP compliance
HDCP 2.2/1.4
Audio support
Surround sound [up to 7.1ch) or
stereo digital audio
Dimension (LxWxH)
88 x 76 x 30 mm
Weight
151 g
Operating Temp. Range
0~40 °C
What's in the Box
1 x HBT-5 main unit
1 x DC 12V power adaptor
