Ross Video SRA-8802 3G Reclocking Distribution Amplifier
Non-returnable
$540.00
Tags:

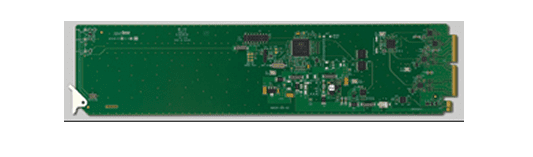

The SRA-8802 is a single channel, 3G distribution amplifier redesigned using the latest technology and optimized to achieve the industry’s best EQ performance offering cable lengths up to 120m at 3G. Equalization and reclocking is performed on all common serial digital signals, including 3G / HD / SD SDI. Non-inverting output drivers make this ideal for distributing DVB-ASI signals as well.
Product Details
- 1x8 / 1x4 distribution amplifier
- Equalizes and reclocks all SDI signals from 143Mb/s to 2.97Gb/s
- Non-inverting outputs perfect for DVB-ASI distribution
- Input EQ 3G- 120m at2.97Gb, HD - 200m at1.485Gb, SD -500m at270Mb
- A/B input failover protection (using R2 rear module)
- Automatic detection of incoming data rate
- Standard and split rear module I/O options
- Optional bypass relay using the -R2R rear module
- Standard, split and bypass relay rear module I/O options
- Up to 10 channels of 1x8 or 20 channels of 1x4 in a single frame
- LED indicators for signal presence and data rate for each channel
- Excellent input / output return loss specifications
- Up to 20 SRA-8802 cards in the OG3-FR frames (using R2S rear modules)
