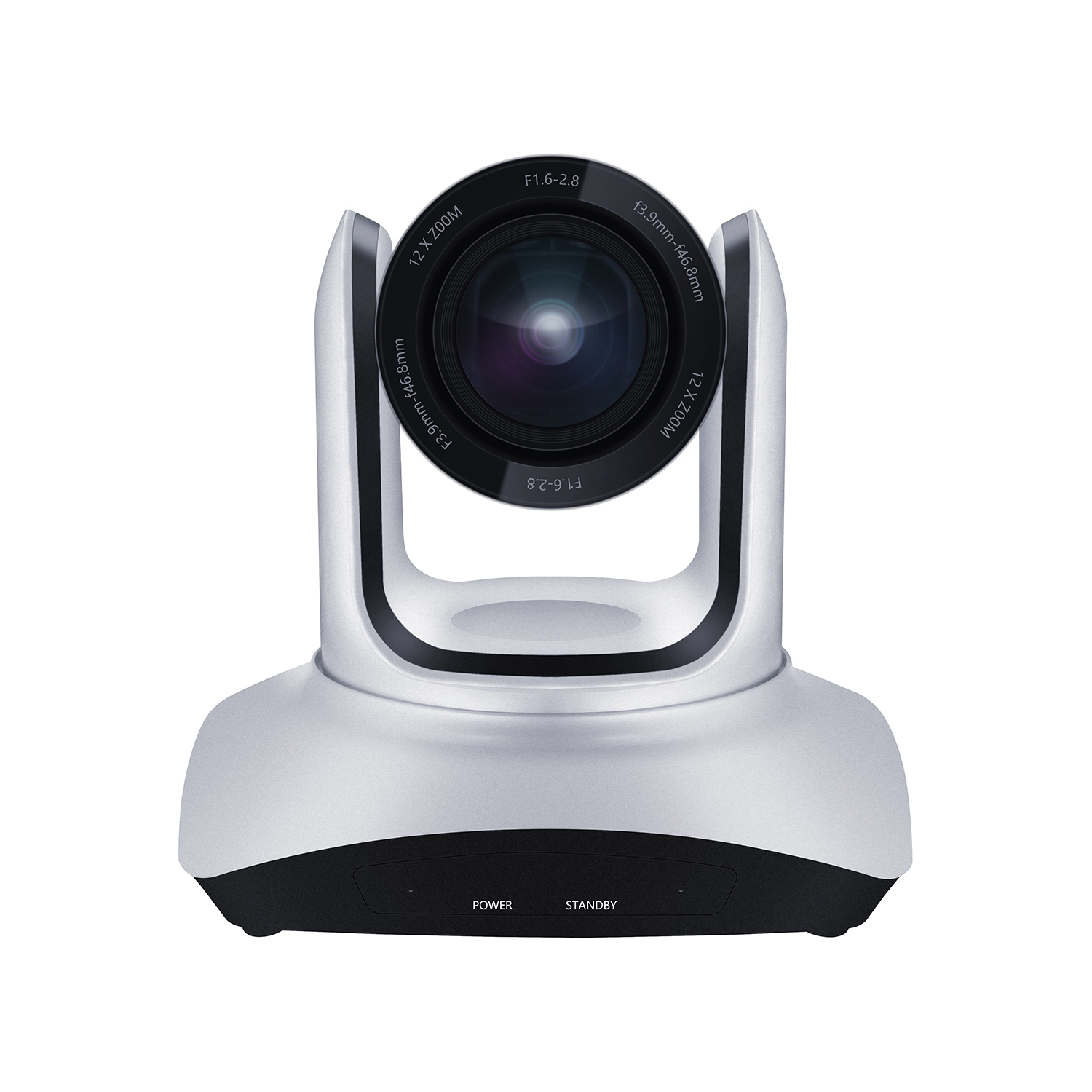

Katovision KT-HD40RS PTZ conference HD camera
Item No. | KT-HD40R | KT-HD40A |
Image Sensor | SONY 1/2.8 Progressive CMOS | |
Effective Pixels | 3.10 Megapixels | 3.50 Megapixels |
Resolution | U2:MJPG/H.264:320*240,640*480,800*600,1280*720,1920*1080 | |
HDMI:1080P60/50,1080P30/25,1080i60/50,720P60/50 | ||
Signal System | PAL/NTSC | |
Lens | 12X optical zoom f=3.9mm(w)~46.8 mm(f) F1.8~F2.8 | 20X optical zoom f=4.7mm(w)~94.0 mm(f) F1.6~F2.8 |
Horizontal View Angle | 72.5°(W)~7.4°(T) | 58.7°(W)~3.2°(T) |
Focus System | Auto/Manual | |
Minimum Illumination | 0.1 Lux | |
Shutter Speed | 1/1~1/10000S | |
Gain | Auto/Manual | |
White Balance | Auto/Manual/Indoor/Outdoor | |
Image Effect | Full color/black and white/Electronic flip | |
S/N Ratio | ≥50db | |
Pan | 355°(max. speed:80°/s) | |
Tilt | ﹣30° to +90° (max. speed: 60°/s) | |
Preset Position | 9 preset positions by IR remote controller, | |
Video Output HD | HDMI、USB 2.0 | |
Power | 12V DC(10.8~13.0V DC) | |
Operating Temperature | 0℃~40℃ | |
Storage Temperature | -20℃~60℃ | |
Dimension | (L)181×(W)181×(H)176mm | |
Consumption | Max.12W (DC 12V) | |
Weight | 1.52 kg | |
Color | Silver | |
Control Protocol | SONY VISCA, PELCO P/D | |
Control Mode | RS-232/485/USB Control | |
Accessories | DC 12V power adapter, IR Remote, Operation manual, HDMI Cable, USB cable, RS-232 cable, Ceiling bracket |
