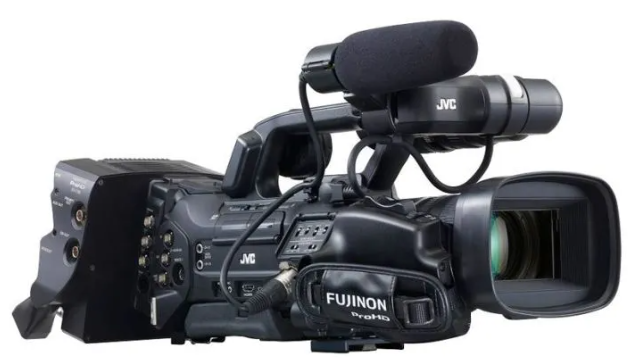

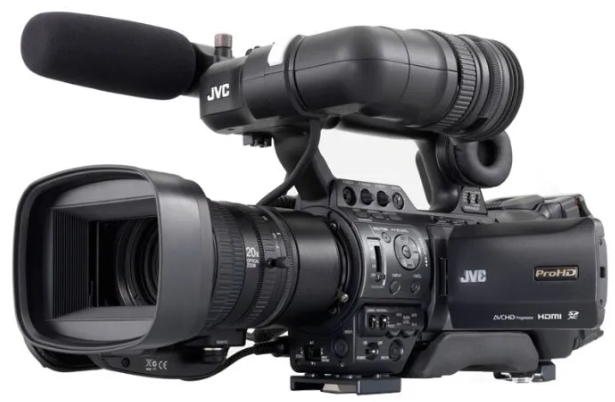

JVC GY-HM850RE ProHD ENG Shoulder Camcorder + Fujinon 20x Zoom Lens

General

Power:

Power consumption:

Approx. 28W (Camera body with provided lens and LCD/VF ON, single recording mode, default settings)

Mass:

Approx. 4.0kg (8.9lbs.) (without battery)
Approx. 4.8kg (10.6 lbs.) (including battery)

Operating temperature:

0˚C to 40˚C (32˚F to 104˚F)

Operating humidity:

35% to 80%

Storage temperature:

-20˚C to 50˚C (14˚F to 122˚F)

Storage humidity:

Under 85%

Camera

Image sensor:

1/3” 2.2M pixels progressive scan 3CMOS

Synchronizing system:

Internal/external synchronization

Stabilizer:

Optical image stabilizer

Lens:

Fujinon F1.6-3.0, 20x (interchangeable) f="4.1-82mm" (35mm conversion:29 to 580mm)

Shutter speed:

1/4 to 1/10000

Filter diameter:

72mm

Gain:

-6, -3, 0, 3, 6, 9, 12, 15, 18 dB, Lolux, ALC

ND filter:

Clear, 1/4, 1/16, 1/64

LCD display:

4.3” 1.15M pixels

Viewfinder:

0.45” 1.22M pixels

Video/Audio Recording

Recording media:

2x SDHC/SDXC memory card Class 4/6/10 (Class4 for AVCHD and H.264 SD/Web only)

Video recording:

Video codec: MPEG-2 Long GOP (HD), AVCHD progressive, H.264

File format:

MOV (HD/SD/WEB), MP4 (XDCAM EX),
MTS (AVCHD progressive), MXF

NTSC Recording mode:

MPEG-2 Long GOP
NTSC setting: HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p,
1440 x 1080/59.94i, 1280 x 720/59.94p,
29.97p, 23.98p
SP mode: 1440 x 1080/59.94i, 1280 x 720/59.94p

PAL recording mode:

HQ mode: 1920 x 1080/50i, 25p, 1440 x 1080/50i
SP mode: 1440 x 1080/50i, 1280 x 720/50p

AVCHD


NTSC setting:
Progressive mode (Max 28Mbps): 1920 x 1080/59.94p
HQ mode (24Mbps): 1920 x 1080/59.94i
SP mode (17Mbps): 1920 x 1080/59.94i
LP mode (9Mbps): 1440 x 1080/59.94i
EP mode (5Mbps): 1440 x 1080/59.94i
PAL setting:
Progressive mode (Max 28Mbps): 1920 x 1080/50p
HQ mode (24Mbps): 1920 x 1080/50i
SP mode (17Mbps): 1920 x 1080/50i
LP mode (9Mbps): 1440 x 1080/50i
EP mode (5Mbps): 1440 x 1080/50i

HD (H.264)

NTSC setting: XHQ mode: 1920 x 1080/59.94p, 59.94i, 29.97p, 23.98p (50Mbps)
UHQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p (35Mbps)
PAL setting: UHQ mode: 1920 x 1080/50p, 50i, 25p (50Mbps), 1920 x 1080/50i, 25p (35Mbps)

SD (H.264)

NTSC setting: 720 x 480/59.94i (GY-HM850U/HM890U only)
PAL setting: 720 x 576/50i (GY-HM850E/HM890E only)

Web (H.264)

NTSC setting: HQ mode (3Mbps): 960 x 540/29.97p, 23.98p
LP mode (1.2Mbps): 480 x 270/29.97p, 23.98p
PAL setting: HQ mode (3Mbps): 960 x 540/25p
LP mode (1.2Mbps): 480 x 270/25p

Audio recording

LPCM 2ch/4ch, 48kHz/16-bit (MPEG-2 Long GOP/H.264), AC3 2ch (AVCHD), μ-law 2ch (Web)

Interface

Video input:

SDI input (BNC x1) (GY-HM890 only)

Video output:

Composite output (BNC x 1), 3G SDI output (BNC x 1), HDMI output x 1

Audio input:

XLR 3-pin x 2, (MIC,+48V, LINE)/φ3.5mm mini jack x 1

Audio output:

RCA x 2

Headphone:

φ3.5mm mini jack x 2

Genlock input:

BNC x 1

Time code input/output:

BNC x each 1

Remote:

DIN 6-pin x 1/φ2.5mm mini jack x 1

USB:

HOST x 1 (Network connection)/DEVICE x 1 (Mass storage)

DC input:

XLR 4-pin x1

Provided Accessories

Microphone x 1
