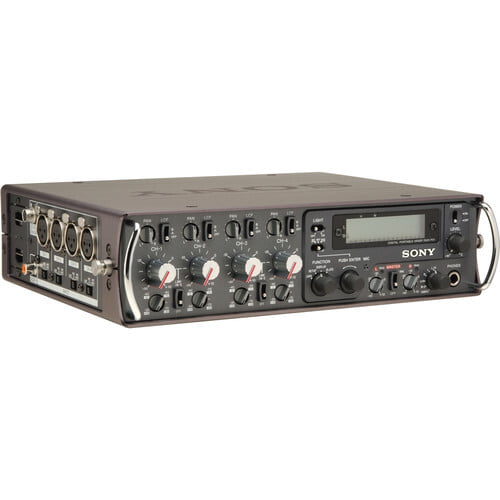

Sony DMXP01 Portable Battery Powered Digital Mixer with 4 XLR Mic Inputs, 24-Bit/96k Resolution, AES/EBU Digital Output and Recallable Setup Memory

Inputs

4 - XLR 3-pin female, electrically balanced
Mic level; -70 to -30 dBu (max. -10dBu), 2.2k ohms or more
Line level; -30 to +10 dBu (max. +30dBu), 10k ohms or more

Output

2 - XLR 3-pin male (L/R) stereo, balanced
-60/-20/+4dBu (max. +24dBu) 600 ohm load or more

Digital Inputs and Outputs

Outputs
AES/EBU: 1 - XLR 3-pin male, 2 ch (L/R) stereo, 110 ohm load
S/PDIF: 1 - RCA coaxial, 2 ch (L/R) stereo, 75 ohm load

Monitor/Headphone Out

1 - 1/4" TRS phone jack
1 - 1/8" (3.5mm) stereo mini jack
10k ohm load or more

ALT I/O

Tape Output: 1 - 1/8" (3.5mm) mini jack, 2 ch (L/R) stereo, unbalanced, 110 ohm
Camera: (In / Out) 1 - Hirose connector 12-pin, 2 ch (L/R) stereo, balanced 600 ohm or more

Link Input/Output

Input
S/PDIF: 1 - RCA coaxial, 2 ch (L/R) stereo, 75 ohm load

A/D Converter

24 bits

D/A Converter

24 bits

Sampling Frequency

48kHz or 96kHz user switchable

Internal Signal Processing

32 bits

Hum & Noise

EIN: -130 dBu, 150 ohm terminated, IHF-A (mic input, typical)

Frequency Response

20Hz to 40kHz +0.5/-3.0dB (at 96kHz sampling frequency)
20Hz to 20Hz +0.5/-1.0dB (at 48kHz sampling frequency)

Distortion

0.05% or less

Metering

VU, BBC-type, DIN-type, NORDIC-type, IEC-type 1, dBFS (selectable)

Phantom Power

+48V

Operating Temperature

0 to +45 degrees C

Power

Internal: 8x AA alkaline batteries, DC 12V, approximately 5 hours life
External: XLR 4-pin, DC jack, 10 to 15V DC

Dimensions

10.47 x 2.67 x 8.11" (266 x 68 x 206mm) (WxHxD)

Weight

4 lb 13 oz (2.2 kg)

Package Weight

8.15 lb
