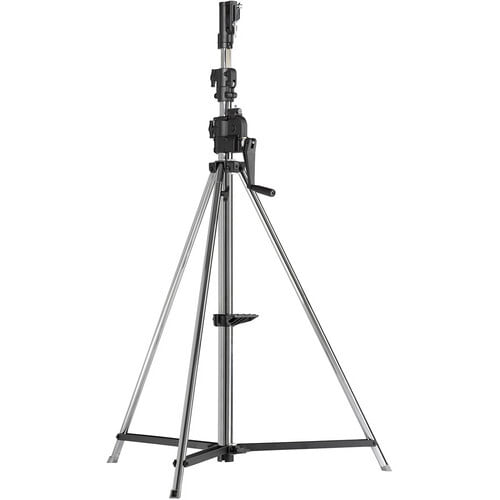

Kupo 3-Section Wind-Up Stand with Auto Self-Lock (12.5')
The Kupo 3-Section Wind-Up Stand with Auto Self-Lock is the perfect combination of strength and safety. The crank handle raises a maximum load of 66 lb to a height of 12.5' in 1.73" increments per single clockwise revolution and self-locks for safety. The stand is large enough to support a skidproof step that allows access to its upper section, while the universal head offers three mounting options. The steel wind-up stand features a leveling leg for uneven terrain and a 2-riser, 3-section design.
Key Features
- Supports 66 lb
- Auto-Locking Feature
- Leveling Leg, Optional Wheels
- Multiple Mounting Options
Specification
Stand Type | 1 x Crank & Wind-Up Stand with Combo/Universal Head |
Maximum Working Height | 12.5' / 3.8 m |
Minimum Working Height | 70.2" / 178.4 cm |
Load Capacity | 66 lb / 30 kg |
Collapsed Height | 71.3" / 181 cm |
Mounting
Stand/Column Top Mount | 5/8" Receiver, 5/8" Stud, 1-1/8" Receiver |
Features
Accepts Second Riser | No |
Wheels | Optional |
Air Cushioned | No |
Detachable Base | No |
Leveling Leg | Yes |
Reverse Legs | No |
General
Number of Sections | 3 |
Footprint Diameter | 50.39" / 128 cm |
Leg Shape | Round |
Finish | Chrome |
Material | Steel |
Weight | 49.4 lb / 22.4 kg |
Warranty Length | Limited 5-Year Warranty |
Packaging Info
Package Weight | 58 lb |
Box Dimensions (LxWxH) | 80 x 9.5 x 7" |
