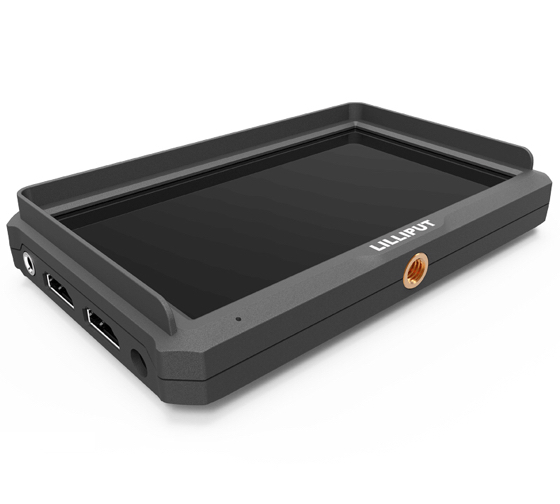

Lilliput 5" 4K HDMI Full HD On-Camera Monitor
This compact, lightweight, fully featured A5 5" On-Camera Monitor from Lilliput is designed to take on almost any production. The 1920 x 1080 LCD screen features 460 cd/m² brightness, 1000:1 contrast ratio, and 170° viewing angle. Its HDMI 1.4 input is compatible with DSLRs, mirrorless cameras, and professional camcorders and can input up to UHD 4K 3840 x 2160 video at 30 fps.
Specification
Lilliput A5
Display
Panel Type | IPS-Type LCD |
Display Size | 5.0" / 12.7 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Viewing Angle | Horizontal: 170° |
Touchscreen | No |
Maximum Brightness | 460 cd/m2 |
Contrast Ratio | 1000:1 |
Pixels Per Inch (ppi) | 440 ppi |
Image Controls | False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom |
I/O
Video | 1 x HDMI Type A (HDMI 1.4) Input |
Audio | 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | 1 |
Power | 1 x Barrel Input |
Media/Memory Card Slot | None |
Format Support
Video Format | HDMI |
Power
DC Input Power | 7 to 24 VDC at 1 A |

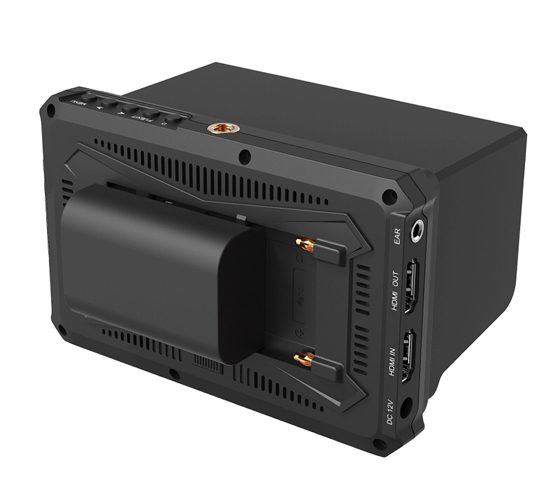

Battery Type | 1 x LP-E6 or L-Series |
Operating Current | 600 mA |
Power Consumption | 9 W (Maximum) |
Mounting
Mounting | 1 x 1/4"-20 Female |
Environmental
Operating Temperature | -4 to 122°F / -20 to 50°C |
Storage Temperature | -22 to 158°F / -30 to 70°C |
General
Dimensions | 5.1 x 3.1 x 0.9" / 13 x 8 x 2.4 cm |
Weight | 4.16 oz / 118 g |
Warranty Length | Limited 1-Year Warranty |
Packaging Info
Package Weight | 1.145 lb |
Box Dimensions (LxWxH) | 6.95 x 5 x 2.55" |
