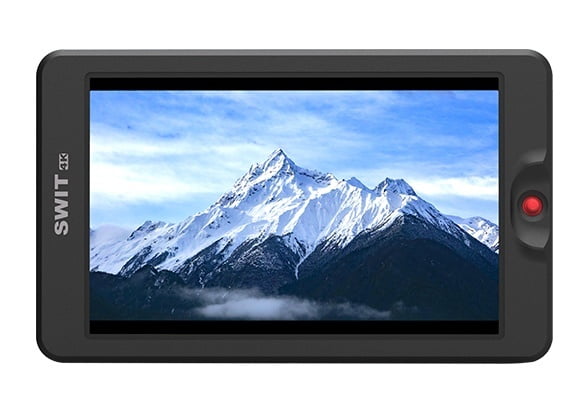

Swit CM-S75F 7 inch 3000nit Super Bright HDR LCD Monitor
SWIT CM-S75F 7" 3000 cd/m² Super Bright 4K HDMI/3G-SDI HDR Monitor features a 1920 x 1200 IPS LCD screen with a high brightness of 3000 cd/m², which allows for outdoor use in most sunny conditions, especially with the included sun hood attached.
Display
Panel Type | IPS-Type LCD |
Display Size | 7.0" / 17.8 cm |
Aspect Ratio | 16:9 |
Viewing Angle | Horizontal: 160° |
Touchscreen | No |
Maximum Brightness | 3000 cd/m2 |
Contrast Ratio | 1200:1 |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
Pixels Per Inch (ppi) | 323 ppi |
I/O
Video | 1 x BNC (3G-SDI/HD-SDI/SD-SDI) Input |
Embedded Audio | HDMI/SDI |
Audio | 1 x 1/8" / 3.5 mm Output |
Built-In Speaker | 1 |
Power | 1 x Barrel Input |
Format Support
Video Format | HDMI |
Power
Battery Type | 1 x L-Series |
Power Consumption | 18.8 W |
Mounting
Mounting | 1 x 1/4"-20 Female |
Environmental
Operating Temperature | 14 to 122°F / -10 to 50°C |
Storage Temperature | 5 to 140°F / -15 to 60°C |
Storage Humidity | 10 to 90% |
General
Material of Construction | Plastic |
Dimensions | 7.6 x 4.6 x 1" / 192 x 116 x 25 mm |
Weight | 0.99 lb / 450 g |
Warranty Length | Limited 2-Year Warranty |
Packaging Info
Package Weight | 2.6 KG |
Box Dimensions (LxWxH) | 14.3 x 11.2 x 4.5" |
