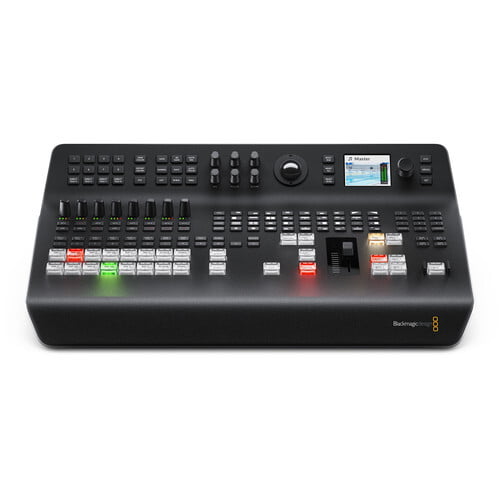

Blackmagic Design ATEM Television Studio Pro 4K Live Production Switcher

Inputs

12G/HD/SD-SDI: 8 x BNC
Audio: 2 x 3-Pin XLR
Reference: 1 x BNC

Outputs

12G/HD/SD-SDI: 8 x BNC
Auxiliary: 1 x BNC
Program: 1 x BNC
Multiview: 1 x BNC
Multiview: 1 x HDMI
Headphone: 1

Other

1 x RS-422
1 x Ethernet
1 x USB 2.0
1 x AC Power In
1 x 4-pin XLR Power In

Format Support

UHD Video:
2160p: 59.94/50/29.97/25/24/23.98

HD Video:
1080p: 59.94/50/29.97/25/24/23.98
1080i: 59.94/50
720p: 59.94/50

Input Resolutions for Computers
2160p: 59.94/50/30/29.97/25/24/23.98
1080p: 59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 59.94/50

SDI Compliance

292M, 424M
2081, 2082

Video Sampling

4:2:2, 10-Bit

Color Precision

4:2:2, 10-Bit

Color Space

4:2:2 YUV

Color Space Conversion

None

Processing Delay

6 Lines

Audio Mixer

12-Input x 2-Channel Mixer

Keyers

Upstream: 1 with Chroma/Linear/Luma Key
Downstream: 2
Chroma: 1
Linear/Luma: 3
Transition (Stinger/DVE): 1

Layers

Up to 5

Generators

Pattern: 2
Color: 2

DVE

Border and Drop Shadow: 1

Number of Windows

Multiview: 1 x 10
Routable: 8
Fixed, Program, and Preview: 2

Media Player

Players: 2 (Non-Volatile Flash Memory)

Media Pool Still Image Capacity: 20 (with Fill and Key)

Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG, TIFF

Channels: Fill and Key for Each Media Player

Media Pool Clip Capacity: 2 (with Fill and Key / Shared Pool)

Media Pool Clip File Format: TGA Sequence

Media Player Clip Length:
UHD 4K: 90 Frames
1080 HD: 360 Frames
720 HD: 1440 Frames

Media Pool Audio File Format: WAV, MPE, AIFF

Operating System Support

MacOS 10.12 Sierra
MacOS High Sierra 10.13 or Higher
Windows 8.1 or 10

Power Supply

AC: 110-240 VAC Internal
DC: 1 x 4-Pin XLR

Power Draw

70 W

Environmental

Operating: 41 to 104°F / 5 to 40°C
Storage: -4 to 140°F / -20 to 60°C
Relative Humidity: 0 to 90% Non-Condensing

Dimensions (WxD)

16.65 x 11.89" / 42.29 x 30.2 cm

Weight

Not Specified by Manufacturer
