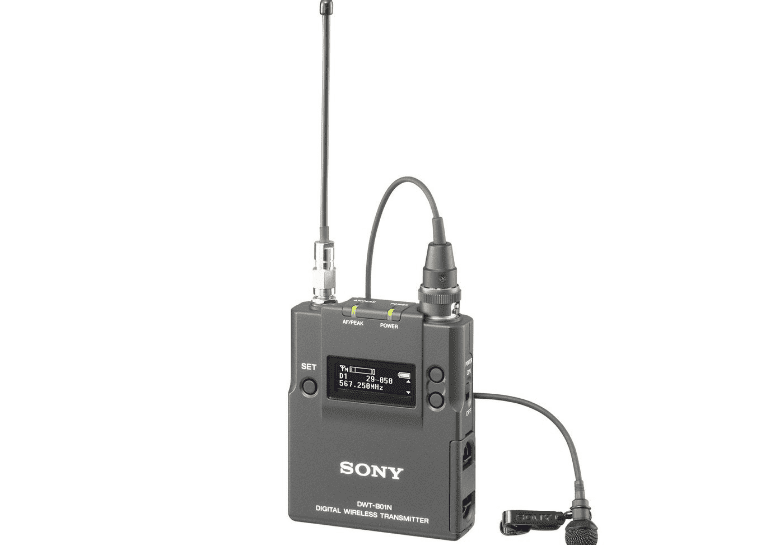

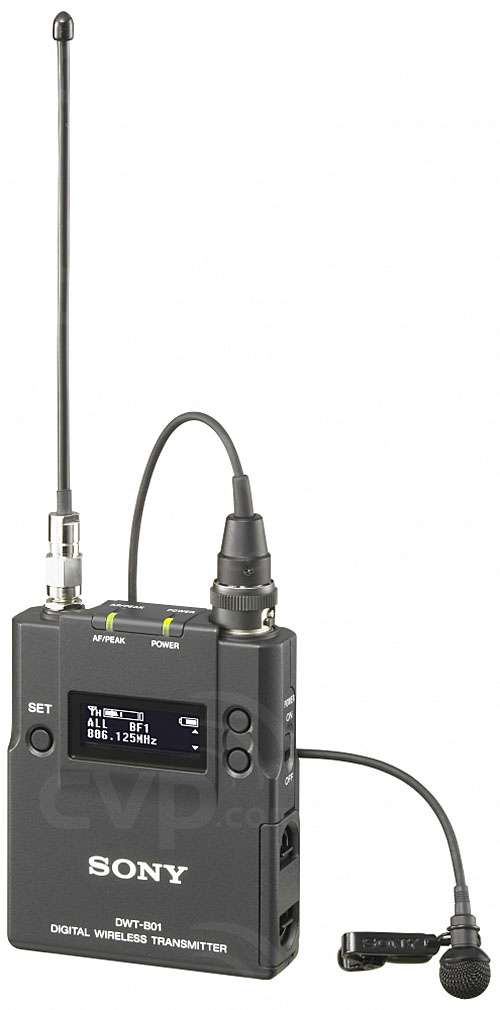

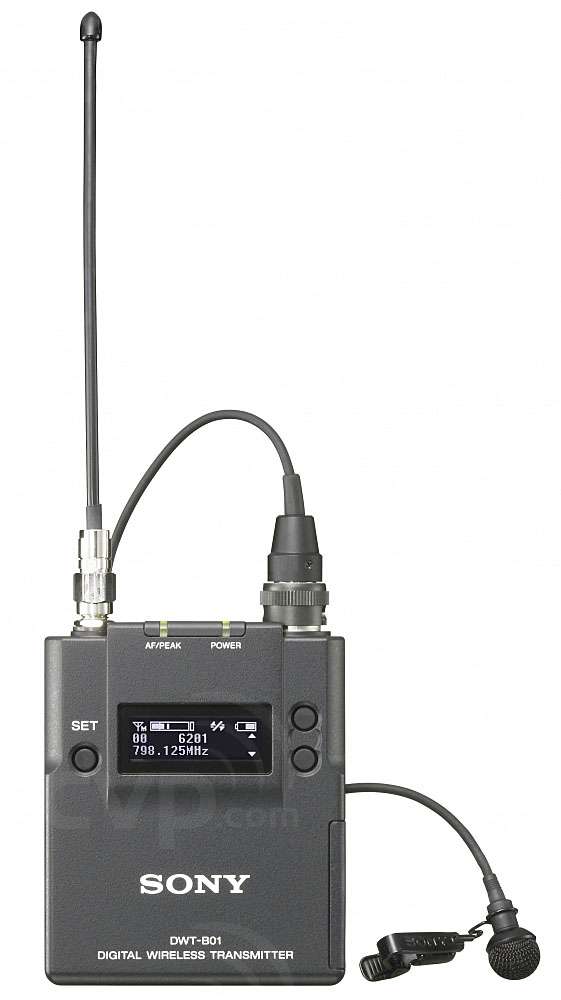

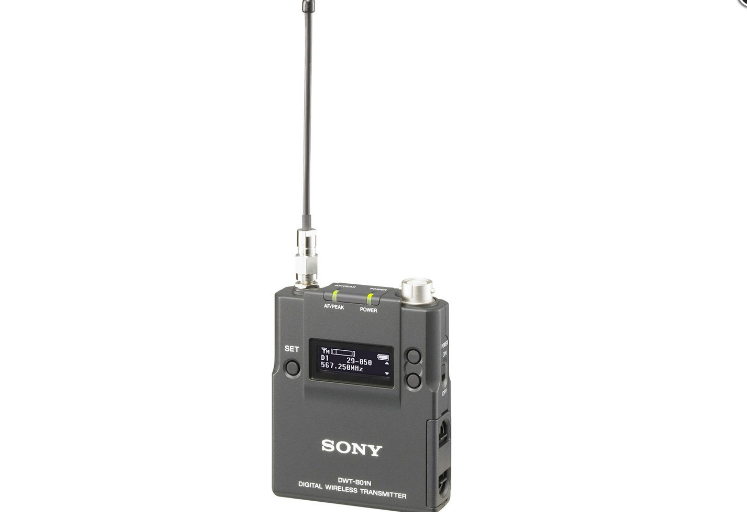

Sony DWT-B01N/E33 Digital Wireless Microphone Belt-Pack TransmitterSony - EC-0.5X3F5M - Microphone Cable 3-POL XLR Female TO 5-POL XLR Male

Wireless Interface

WiDIF-HP

Oscillator Type

Crystal-controlled PLL Synthesizer

Antenna Type

λ/4 flexible wire

Type of Emission

G1E or G1D

Carrier Frequency

CE33: 566.025 MHz to 630.000 MHz (TV-33 to TV-40 channels), 25 kHz steps

RF Power

1 mW/10 mW/50 mW (e.r.p) selectable

Input Connector

Sony 4-pin (SMC9-4S) (female)

Reference Input Level

MIC: -60 dBV (-58 dBu), 1 kHz (at 0-dB attenuator level)
LINE: +4 dBu, 1 kHz

Maximum Input Level

MIC: -22 dBu (with 0 dB attenuator)
LINE: +24 dBu

Audio Attenuator Adjustment Range

0 to 48 dB (3 dB steps, MIC input mode only)

Frequency Response

Transmission: 20Hz to 22kHz (typical)

Dynamic Range

106 dB typical (A-weighted, T.H.D=1%)

Distortion (T.H.D)

MODE1, MODE2: 0.03% or less
MODE3: 0.3% or less

Audio Delay

MODE1: 1.5 msec (total: 3.4msec)
MODE2: 1.0 msec (total: 1.5msec)
MODE3: 2.1 msec (total 4.0msec)

Wireless Remote Control

Cross Remote (2.4-GHz IEEE802.15.4 compliant)

Display

OLED

Power Requirements

DC 3.0 V (with two AA-size alkaline (LR6) batteries)

Battery Operating Time

Approx. 5 hours with Sony's AA-size alkaline (LR6) batteries at 25℃(77°F) at 10-mW output
(with the wireless remote control function off and DIMMER MODE set to AUTO OFF)

Operating Temperature

0°C to 50°C / 32°F to 122°F

Storage/Transport Temperature

-20°C to +60°C / -4°F to +140°F

Dimensions

63 x 17 x 73 mm (excluding the anntenas) (W x H x D)

Mass

Approx. 125 g (including batteries)
