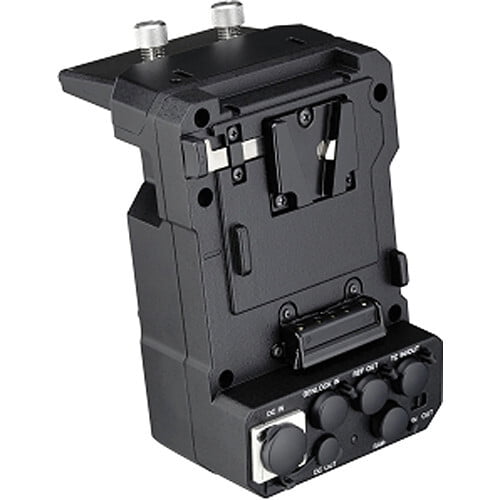

Sony XDCA-FS7 Extension Unit for PXW-FS7 and PXW-FS7M2

144-pin I/O

Supported Video Formats

4K RAW 12-bit
4096x2160 23.98p, 25p, 29.97p, 50p, 59.94p
Slow and Quick Motion: 1 to 60 fps

2K RAW 12-bit
2048x1080 23.98p, 25p, 29.97p, 50p, 59.94p
Slow and Quick Motion: 240 fps, 120 fps

HD ProRes HQ 4:2:2 10-bit
1920x1080 23.98p (176 Mbps), 25p (184 Mbps), 29.97p (220 Mbps)

HD ProRes 4:2:2 10-bit
1920x1080 23.98p (117 Mbps), 25p (122 Mbps), 29.97p (147 Mbps)

Audio Format

24-bit, 48 kHz, 2-channel

RAW Output

1 x BNC

Genlock

1 x BNC

Reference Output

1 x BNC

Timecode

1 x BNC (selectable from input and output)

DC Input

1 x 4-pin XLR

DC Output

1 x 4-pin Hirose

Battery Connector

1 x V-Mount

Package Weight

2.33 lb

Box Dimensions (LxWxH)

8.95 x 7.2 x 6.45"
