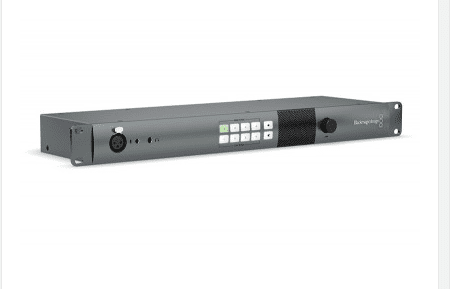

Blackmagic Design ATEM Studio Converter 2
The Blackmagic Design Studio Converter 2 inputs video signals transmitted over optical fiber and converts the signals to SDI for use with video switchers. When used in conjunction with the Blackmagic Design ATEM Camera Converter,
SDI Video Input
1 x 10 bit SD/HD switchable program input from switcher, including tally information
SDI Video Output
4 x 10 bit SD/HD switchable camera outputs. 1 x 10 bit SD/HD switchable program loop through output connects to another ATEM Studio Switcher
Talkback Audio
Aviation Headsets with 0.25" TRS headset connector and 0.206" TRS microphone connector. Front mounted balanced XLR microphone connector
Analog Audio
1 x stereo RCA monitoring output
AES/EBU Audio Input
1 x combined headphone input. 1 x combined microphone input. Combined inputs for connecting to other ATEM Studio Converters
AES/EBU Audio Output
1 x combined headphone output. 1 x combined microphone output. Combined outputs for connecting to other ATEM Studio Converters
Balanced XLR Audio Output
4 x camera stereo analog audio outputs
Optical Fiber Video Input
4 x single mode SD/HD switchable camera inputs with LC connector
Optical Fiber Video Output
4 x single mode SD/HD switchable camera outputs with LC connector
Optical Fiber Audio Input
4 x single mode camera audio inputs with LC connector. Channels 1 & 2 are camera audio. Channels 15 & 16 are intercom audio
Optical Fiber Audio Output
4 x single mode camera audio outputs with LC connector. Channels 1 & 2 are camera audio. Channels 15 & 16 are intercom audio
Computer Interface
1 x mini-B type USB 2.0 connector for firmware updates.
Standards: SDI Format Support
525i59.94, 625i50, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98,1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60.
Standards: SDI Compliance
SMPTE 259M, SMPTE 292M.
Standards: Audio Sampling
Television standard sample rate of 48Khz, 24 bit A/D conversion.
Standards: Video Sampling
4:2:2
Standards: Color Precision
10-bit
Standards: Color Space
REC 601, REC 709.
Standards: Multiple Rate support
SDI switches between SD and HD.
Software Included
Converter Utility for firmware update.
Operating Systems
Mac OS X 10.7 Lion or later and Mac OS X 10.8 Mountain Lion or later
Windows 7 or Windows 8
Power Supply
110 - 240 V AC input with redundant 12-31V DC input.
Operating Temperature
0deg. to 40deg. C (32deg. to 104deg. F)
Storage Temperature
-20deg. to 45deg. C (-4deg. to 113deg. F)
Relative Humidity
0% to 90% non-condensing
Dimensions
482x44 mm / 18.97x1.73"
