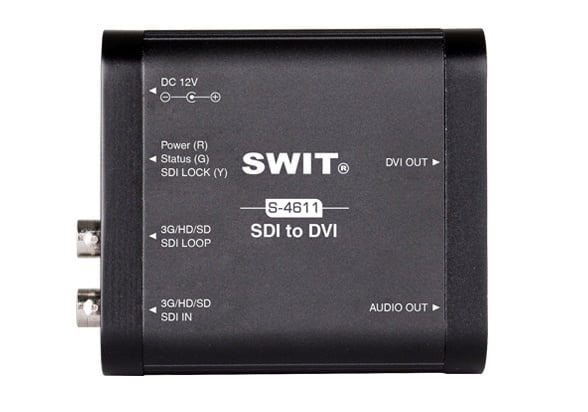

Swit S-4611 SDI to DVI Converter

Video Input Connectors

1 x BNC (3G-SDI / HD-SDI / SD-SDI) Female

Input Video Format

SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
1080i: 50/59.94/60 fps
PAL: 50 fps
NTSC: 60 fps

Audio Input Connectors

None

Embedded Audio Input

SDI: 2-Channel

Video Output Connectors

1 x DVI-D DL (DVI) Female
1 x BNC (HD-SDI / SD-SDI) Female (Loop Output)

Output Video Format

DVI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
PAL (768 x 576): 50 fps
NTSC: 60 fps

Audio Output Connectors

1 x 1/8" / 3.5 mm TRS Stereo Analog Female

Output Audio Format

Analog: 48 kHz

Embedded Audio Output

SDI: 2-Channel

Video Standard Compliance

SMPTE 125M/274M/296M/RP-211

Expansion Slots

None

Power Connector

1 x Proprietary (6 to 18 VDC) Input

Power Consumption

Device: 3 W

Operating Temperature

32 to 158°F / 0 to 70°C

Operating Humidity

10 to 90%

Dimensions

3.9 x 3.3 x 1.1" / 98.5 x 84.2 x 29 mm

Weight

7.4 oz / 209 g

Warranty Length

Limited 2-Year Warranty

Package Weight

Box Dimensions (LxWxH)

6.5 x 4.8 x 3.1"
