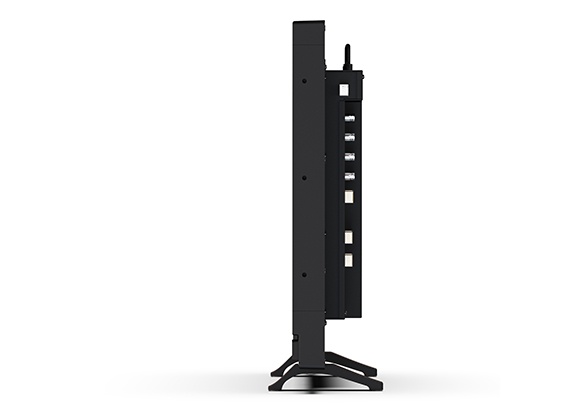

Swit BM-U275HDR 27-inch 4K/8K 12GSDI HDR Studio Monitor

Size

27 inches

Display area

596.7×335.6mm

Resolution

3840×2160

Aspect ratio

16:9

Brightness

1000nit

Contrast

1400:1

Colour depth

1.073G colours, 10 bit

Signal process

18 bit

Viewing

178°(H)∕178°(V)

Input

BNC ×2

12G/6G/3G/HD/SD-SDI input

BNC ×2

3G/HD/SD-SDI input

HDMI ×1

HDMI 2.0 input

SFP ×1

Optical Fiber 12G input (By optional SFP adaptor)

RS485 ×1

TSL 3.1/4.0 UMD input

RS485 ×1

GPI (Tally) input

RJ45 ×1

1000M Ethernet input for Webserver IP control

Output

BNC ×2

12G/6G/3G/HD/SD-SDI loop output, SFP Fiber input to 12G output

BNC ×2

3G/HD/SD-SDI loop output

RS485 ×1

TSL 3.1/4.0 UMD output

Analog audio

3.5mm headphone and speaker

Video Format

SDI 1&2, SFP

4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

2048×1080i (50 / 59.94 / 60)

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

1080i (60 / 59.94 / 50)

1080psf (30 / 29.97 / 25 / 24 / 23.98)

720p (60 / 59.94 / 50)

480i (59.94)

SDI 3&4

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

2048×1080i (50 / 59.94 / 60)

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

1080i (60 / 59.94 / 50)

1080psf (30 / 29.97 / 25 / 24 / 23.98)

720p (60 / 59.94 / 50)

480i (59.94) 576i (50)

Quad Link SDI (Each channel)

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

HDMI

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

1080i (60 / 59.94 / 50)

720p (60 / 59.94 / 50)

General

Input voltage

AC 100-240V, 50/60Hz

Power consumption

130W

Working temperature

0°C～+50°C

Working humidity

10%～90%

Storage temperature

-15°C～+60°C

Storage humidity

10%～90%

Dimensions

651.7×433.1×88.8mm

Net weight (w/o stand)

12.55kg
