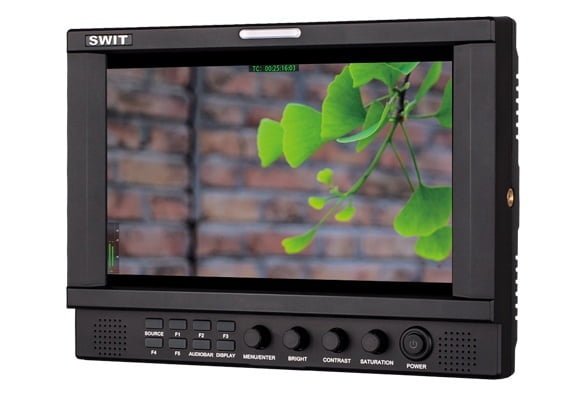

Swit S-1093H 9-inch Full HD LCD Monitor (Simple package)
SWIT first 9-inch FHD waveform monitor, S-1093H, with 1920x1200 resolution IPS LCD panel, 2K/3G/HD/SD-SDI and HDMI input, provides broadcast technical reference patterns-
Screen Size
9"
Display area
191.52 x 119.70mm
Resolution
1920 x 1200
Aspect ratio
16:9 (4:3 adjustable)
Brightness
450cd/m2
Contrast
800:1
Color
16.77 million colors
Viewing angle
Horizontal: 170 deg. Vertical: 170 deg.
Input
2x BNC: 2K/3G/HD/SD-SDI input x 2
1x BNC: Composite input
1x HDMI: HDMI input
1x 3.5mm: Analog audio input
Output
2x BNC: 2K/3G/HD/SD-SDI loop output x2
1x BNC: Composite loop output
1x HDMI: HDMI loop output
1x 3.5mm: SDI, HDMI, Analog audio output
Video Format: CVBS
NTSC / MPAL
Video Format: SDI
SMPTE ST 2048-2: 2048x1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048x1080i (60 / 59.94 / 50)
SMPTE-425M: 1080p (60 / 59.94 / 50)
SMPTE-274M: 1080i (60 / 59.94 / 50); 1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
Video Format: HDMI
480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
Working voltage
DC / battery 6.5V-24V
Power consumption
18W
Working temperature
0 to 40 deg. C (32 to 104 deg. F)
Working humidity
10% - 90%
Storage temperature
-15 to 60 deg. C (5 to 140 deg. F)
Storage humidity
10% - 90%
Dimensions
241 x 178 x 52mm (9.49 x 7.01 x 2.05")
Weight
960g (33.86oz) (main body)
