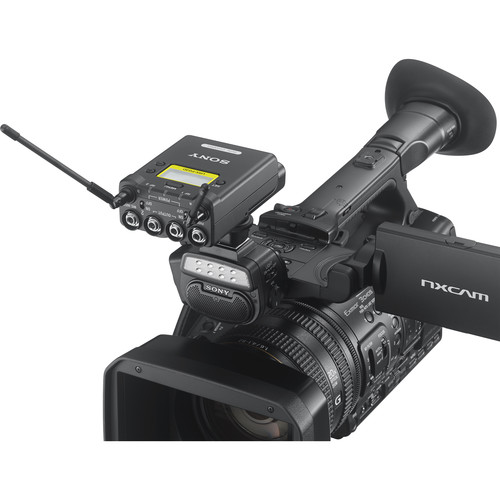

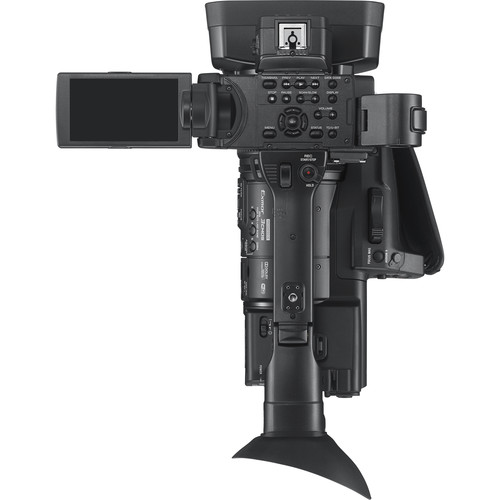

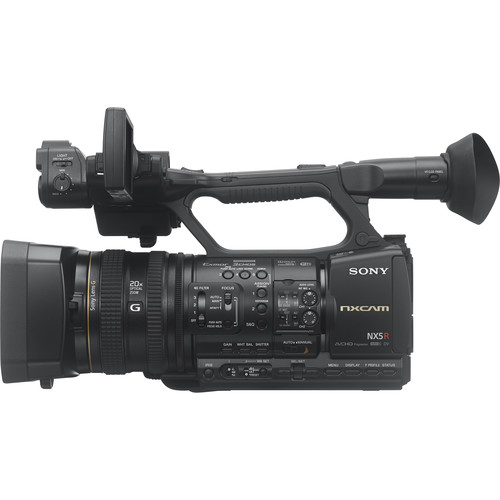

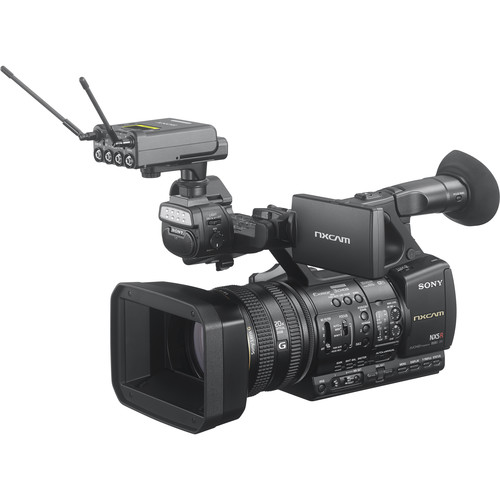

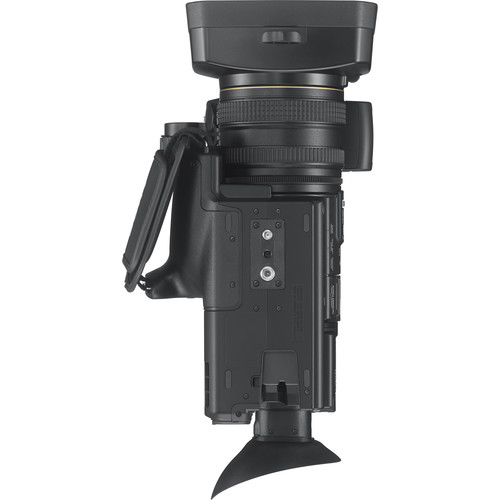

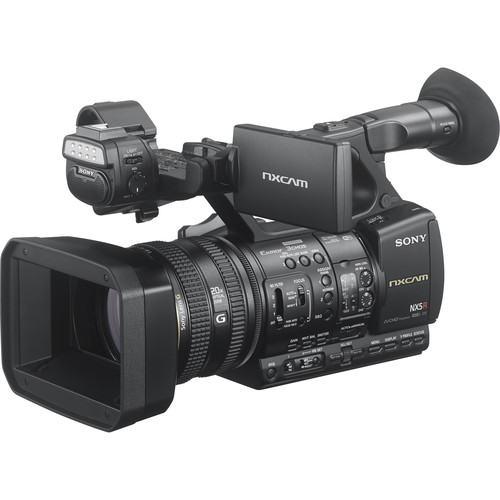

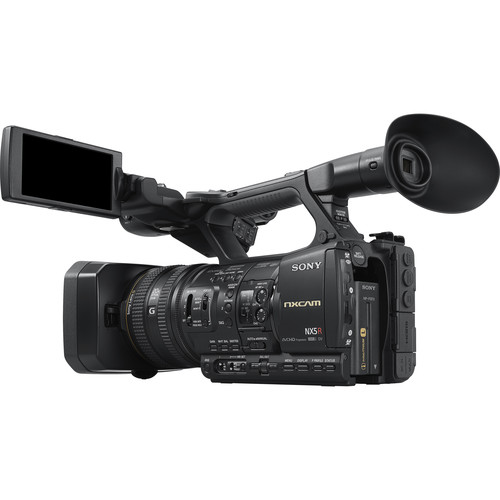

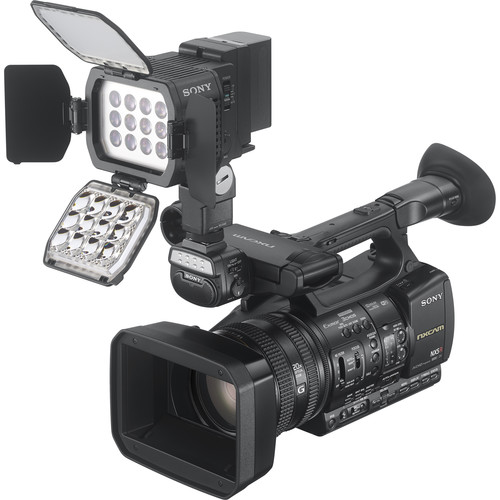

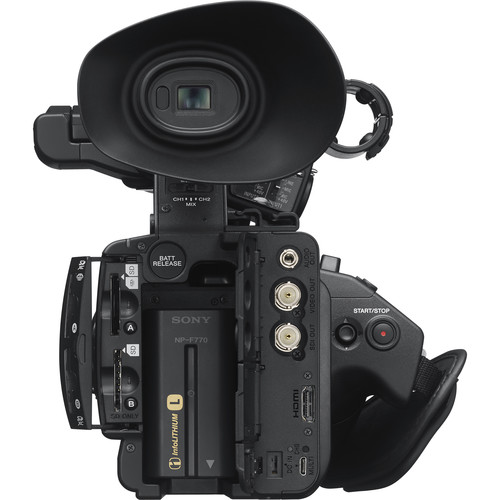

Sony HXR-NX5R NXCAM Professional Camcorder with Built-In LED Light
Extending the NXCAM line of solid-state camcorders, Sony's HXR-NX5R offers improved network functionality over previous cameras in the line, and it allows you to select from XAVC-S 50 Mb/s to AVCHD/DV recording.
Specification
Imaging
Image Sensor
3-Chip 1/2.8" CMOS Sensor
Sensor Resolution
2.07 MP
Gain
-6 to 30 dB
Minimum Illumination
1.2 Lux at 1/30 Shutter Speed
White Balance Range
2300 to 15,000K
Lens
Focal Length
4.1 to 82mm
35mm Equivalent Focal Length
28.8 to 576mm
Optical Zoom Ratio
20x
Max Digital Zoom
40x
Maximum Aperture
f/1.6
Minimum Aperture
f/11
Filter Size
72 mm
Control Rings
Focus
Zoom
Image Stabilization
Digital
Focus Control
Autofocus
Manual Focus
Camera
Shutter Speed
1/3 to 1/10,000 sec
Built-In ND Filter
Mechanical Filter Wheel with 2 Stop (1/4), 3 Stop (1/8), 6 Stop (1/64) ND Filters
Built-In Microphone Type
Stereo
Recording Media
1 x SDXC/Memory Stick PRO Duo Hybrid Card Slot
1 x SDXC Card Slot
Recording
Recording Modes
XAVC S 4:2:0 8-Bit:
1920 x 1080p at 23.98/29.97/59.94 fps (50 Mb/s)
AVCHD 4:2:0 8-Bit:
1920 x 1080p at 23.98/29.97/59.94 fps (17 to 28 Mb/s)
1920 x 1080i at 59.94 fps (17 to 24 Mb/s)
DV:
720 x 576i at 59.94 fps (25 Mb/s)
Audio Recording
2-Channel
IP Streaming
FTP, FTPS, MPEG2, RTMP, UDP: 1920 x 1080
Interfaces
Video Connectors
1 x BNC (3G-SDI) Output
1 x HDMI Output
1 x BNC (Composite) Output
Audio Connectors
2 x 3-Pin XLR Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
1 x 1/8" / 3.5 mm Stereo Output
Other I/O
1 x 3.5 mm LANC Input
1 x USB Micro-B Output
Wireless Interfaces
2.4 GHz Wi-Fi Video Output, Audio Output
Display
Display Type
LCD
Screen Size
3.5"
Screen Resolution
1,560,000 Dots
EVF
EVF Display Type
OLED
Screen Size
.39"
EVF Resolution
1,440,000 Dots
Power
Battery Type
Sony L-Series
Power Connectors
1 x Barrel Input
Power Consumption
7.8 W
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
General
Accessory Mount
1 x Multi-Interface Shoe
Tripod Mount
1/4"-20 Female
Built-In Light
Yes
Dimensions
15.3 x 7.9 x 7" / 38.86 x 20.07 x 17.78 cm
Weight
4.7 lb / 2.13 kg
Packaging Info
Package Weight
9.7 lb
Box Dimensions (LxWxH)
16.6 x 13.2 x 9.6"
