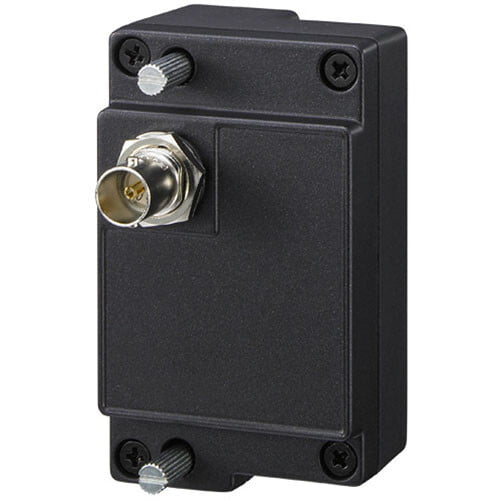

Sony BKM341HS HD/SD-SDI Input Adapter for LMD1510W and LMD2110W Monitors

Compatibility

Sony LMD1510W and LMD2110W monitors

Input

1 x Digital BNC

Output

1 x 9-pin D-sub

Input Signal

270 Mbps, 10 bit 4:2:2 component digital video
SMPTE 259M: 1.48 Gbps, 10 bit 4:2:2 component digital video
SMPTE 292M: (except 1080/50p and 1080/60p input)

Operating Conditions

Temperature: 32 to 95°F (0 to 35°C)
Optimum Temperature: 68 to 86°F (20 to 30°C)
Humidity: 0 to 90% (no condensation)
Pressure: 700 to 1060 hPa

Storage Conditions

Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0 to 90%
Pressure: 700 to 1060 hPa

Power Requirements

5 V (supplied by monitor)

Power Consumption

Approximately 1.8 W

Dimensions (Approx.)

1.9 x 3.0 x 1.5" (45 x 75 x 36 mm) not including projected parts

Weight (Approx.)

4.2 oz (120 g)

Package Weight

0.5 lb

Box Dimensions (LxWxH)

7.1 x 3.5 x 3"
