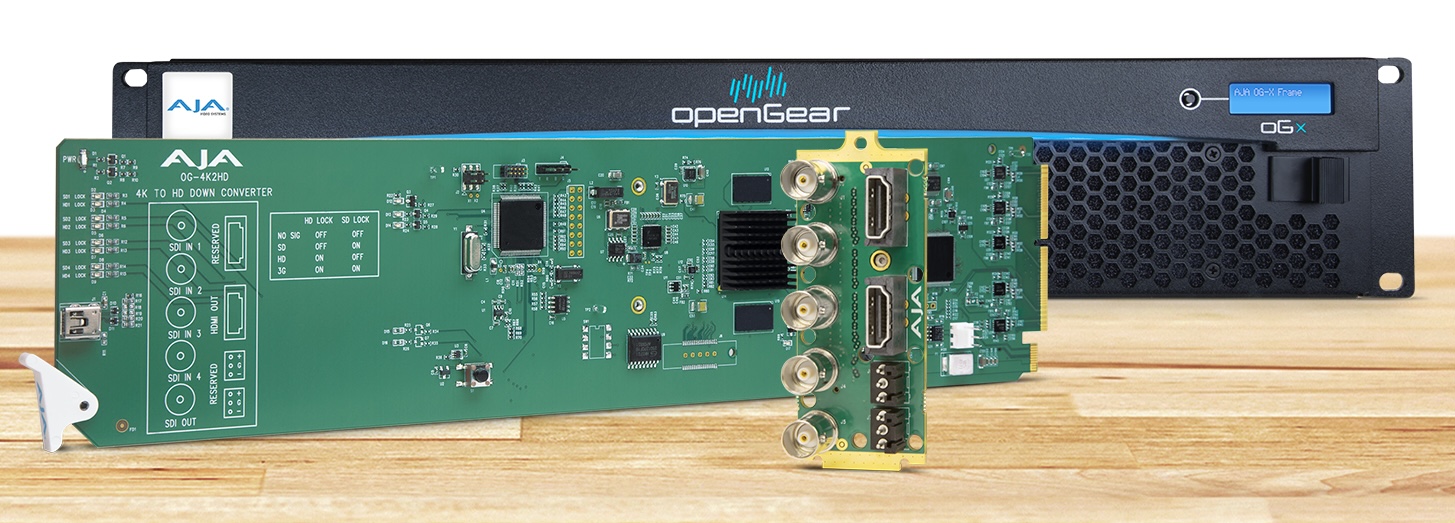

AJA openGear Ultra HD 4K SDI to 3G-SDI Down-Converter with DashBoard Support

Video Formats

(4K) 4096 x 2160p

(4K) 4096 x 2160PsF

(UltraHD) 3840 x 2160p

(Ultra HD) 3840 x 2160PsF

(2K) 2048 x 1080p

(2K) 2048 x 1080Psf

(HD) 1920 x 1080p

(HD) 1920 x 1080Psf

(HD) 1920 x 1080i

(HD) 1280 x 720p

(SD) 720x576i

(SD) 720x480i

Video Input Digital

4x 3G-SDI BNC, SMPTE-259/292/372/424

YCbCr 4:2:2/4:4:4

RGB 4:4:4, SMPTE or Full level

8 or 10-bit

Two Sample Interleave (2SI) or Square Division (Quadrant) source mapping

4x 3 Gb SDI (Level A or B-Dual Link)

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30

4x 1.5 Gb SDI

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30

(4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30

(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30

2x 3 Gb SDI (Level B-Dual Stream)

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30

(4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30

(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30

1x 3 Gb SDI (Level A or B-Dual Link)

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080i 50, 59.94, 60

(HD) 1280 x 720p** 50, 59.94, 60

2x 1.5 Gb SDI

(HD) 1920 x 1080p 50, 59.94, 60

1x 1.5 Gb SDI

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30

(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080i 50, 59.94, 60

(HD) 1280 x 720p 50, 59.94, 60

1x 270 Mb SDI

(SD) 625i 50

(SD) 525i 59.94

*PsF is Level B-Dual Link

**1280 x 720p is Level A Only

Video Output Digital

1x 3G-SDI BNC, SMPTE-259/292/372/424

Colour space and sampling match input signal

1x 3 Gb SDI (Level A or B-Dual Link)

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080i 50, 59.94, 60

(HD) 1280 x 720p* 50, 59.94, 60

1x 1.5 Gb SDI

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30

(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080i 50, 59.94, 60

(HD) 1280 x 720p 50, 59.94, 60

1x 270 Mb SDI

(SD) 625i 50

(SD) 525i 59.94

1x HDMI Type A connector, HDMI v1.4

YCbCr 4:2:2/4:4:4

RGB 4:4:4, SMPTE or Full level

8 or 10-bit (4:4:4 limited to 8 bit)

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(HD) 1920 x 1080i 50, 59.94, 60

(HD) 1280 x 720p 50, 59.94, 60

(SD) 720 x 576i 50

(SD) 720 x 480i 59.94

*1280 x 720p is Level A Only

Audio Input Digital

SDI embedded audio, 24-bit, 8-Channel

Audio Output Digital

SDI embedded audio, 24-bit, 8-Channel

HDMI embedded audio, 24-bit, 8-Channel

User Interface

OpenGear DashBoard network control software via Windows, macOS or Linux

Size (w x d x h)

openGear standard form factor, front slot and rear card. Two slots required for each card.

Weight

0.3kg/ 0.5 lb

Power

openGear frame compatible, 11.0 watts max per card

Environment

Safe Operating Temperature

0 to 40 C (32 to 104 F)

Safe Storage Temperature (Power OFF)

-40 to 60 C (-40 to 140 F)

Operating Relative Humidity

10-90% noncondensing

Operating Altitude

<3,000 meters (<10,000 feet)
