Sony ICP-6530 24-Button Control Panel for MVS-6530
Non-returnable
$32,484.03
Tags:

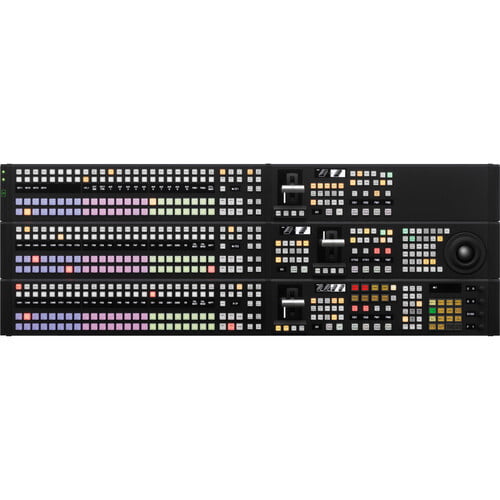

The ICP-6530 24-Button Control Panel from Sony is designed for the MVS-6530 switcher. It features 3 M/E rows, 24 cross-point colored buttons, OLED mnemonic displays for optimal visibility, and an intuitive menu operation (menu display sold separately).
Product Details
Specifications
Compatibility | MVS-6530 switcher |
Connectors | RJ-45, 1000BaseT |
Operating Temperature | 41 to 104°F (5 to 40°C) |
Operating Humidity | 10 to 90% |
Storage Temperature | -4 to 140°F (-20 to 60°C) |
Power Requirements | 100 - 240 VAC, 10%, 50/60 Hz |
Current Consumption | Max 1.1 A |
Inrush Current | 46 A peak, 11 A rms (240 VAC) |
Dimensions | 45.4 x 15.6 x 7.1" (115.4 x 39.6 x 18.0 cm) |
Weight | 44.1 lb (20 kg) |
