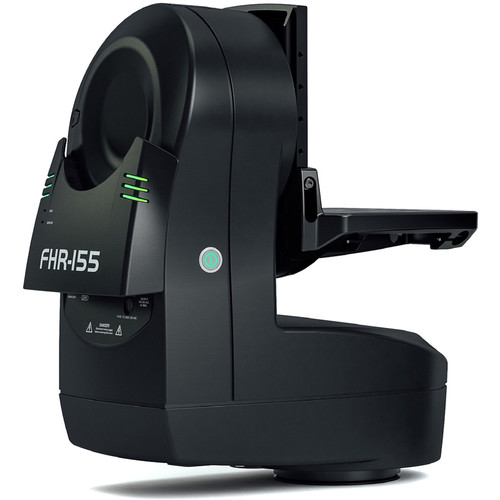

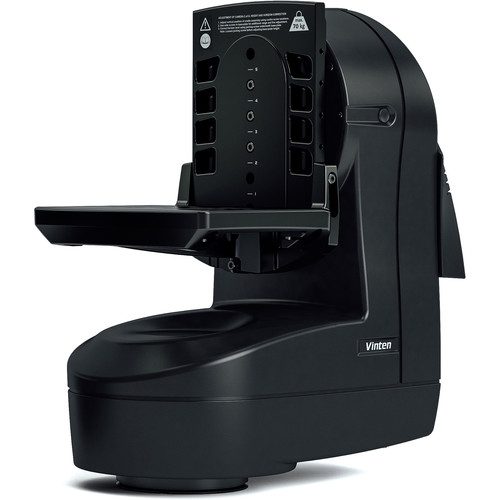

Vinten FHR-155 VR Head

Payload

155 lb / 70.31 kg

Pan & Tilt Range

Pan: 359°
Tilt: ±50°

Drag Control

Continuous Drag Adjustment, Servo Controlled

Angular Speed

Velocity: 0.05 to 60°/s
Acceleration Typical: 60°/s²
Acceleration Peak: 120°/s²

Lens Control

Canon Lenses: Full-Servo
Fujinon Lenses: Full-Servo

Encoders

22-Bit

Genlock

Black Burst / Tri-Level

Connectors

Power: powerCON
Ethernet: 3 x RJ45
Genlock: 1 x Micro BNC
Aux Port: 26-pin
LANC Port

Shot Recall Repeatability

±60 Arcseconds (±0.016°)

System Resolution / Accuracy

22-bit, >0.01˚

Rated Load Inertia

16.53 lb ft² / 7.5 m² kg

Motor Noise

41dBA at Max Speed

Network

IP Ethernet

Power

Input: 100 to 240 VAC, 50/60 Hz
Consumption: 175 W

Fuse Protection

250 VAC, 3.15 A

Temperature Range

41 to 104°F / 5 to 40°C

Dimensions

19.29 x 17.17 x 9.25" / 490 x 436 x 235 mm

Weight

49.6 lb / 22.5 kg
